product description
Industry DLP Ceramic 3D Printer Features:
1.Large build volume: Supports a maximum build size of 288 × 162 mm, designed to meet industrial-scale printing demands.
2.High production efficiency: Achieves printing speeds of up to 600 layers per hour for alumina, ensuring efficient industrial output.
3.High printing accuracy: Delivers optical precision of up to 50 μm, fulfilling the requirements of high-precision applications.
4.Optimized material usage: The peristaltic filtered feeding system significantly minimizes material consumption per print, improving overall material efficiency.
| Parameter | ADT-3D-ZP-Printer-Pro-144-37.5 | ADT-3D-ZP-Printer-Pro-192-50 | ADT-3D-ZP-Printer-Pro-288-75 |
|---|---|---|---|
| Equipment Size | 985 × 610 × 1900 mm | 985 × 610 × 1900 mm | 1215 × 805 × 1980 mm |
| Build Volume (X × Y × Z) | 144 × 81 × 120 mm | 192 × 108 × 120 mm | 288 × 162 × 120 mm |
| Pixel Size | 37.5 μm | 50 μm | 75 μm |
| Surface Power | 45 mW/cm² | 30 mW/cm² | 42 mW/cm² |
| Light Source | DLP (Digital Light Processing) | DLP | DLP |
| Native Resolution | 3840 × 2160 | 3840 × 2160 | 3840 × 2160 |
| UV Wavelength | 405 nm | 405 nm | 405 nm |
| Adjustable Power Output | 1–100% | 1–100% | 1–100% |
| Suggested Layer Thickness | 2 μm | 2 μm | 2 μm |
| Application Fields | Research, Ceramics, Microdevices | Industrial Ceramics, MEMS | Mass Production, Large Structures |
Industry DLP Ceramic 3D Printer Product Introduction
1.Large Dimensions
With a maximum build volume of 288 × 162 × 120 mm, the system enables both integrated fabrication of large ceramic parts and batch manufacturing of high-precision small components. This versatility supports production requirements across aerospace, automotive, and 3C (computer, communication, and consumer electronics) industries.
2.High Printing Efficiency
With a printing speed of up to 600 layers per hour (taking alumina as an example), the system greatly reduces ceramic part production time, making it ideal for rapid prototyping and iterative validation, as well as high-volume industrial manufacturing.
3.High Printing Precision
Featuring micron-level printing accuracy, the system supports highly precise fabrication of complex geometries, making it well suited for high-precision component production, such as precision molds, while ensuring consistent and stable final product quality.

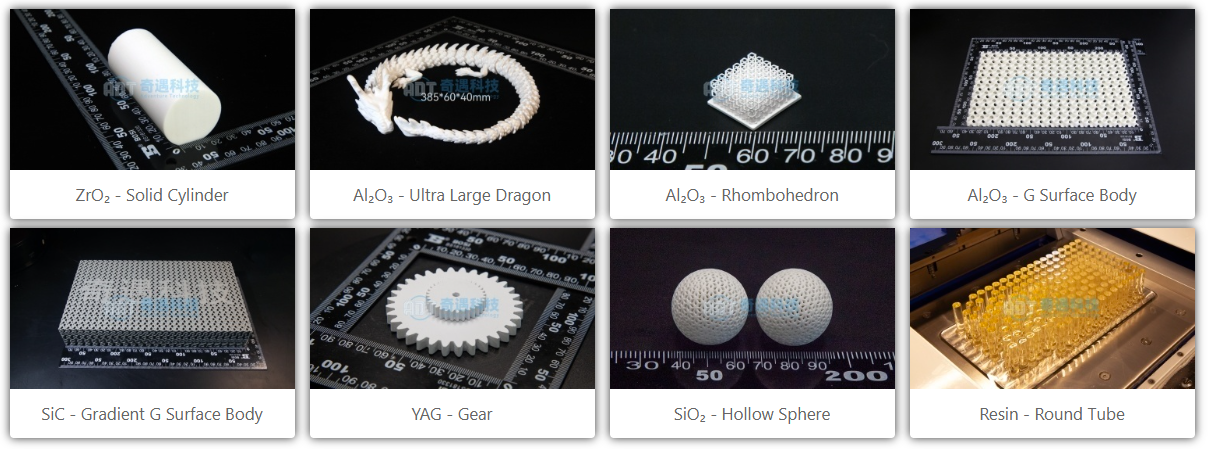

Industry DLP Ceramic 3D Printer Application Cases
An industrial DLP ceramic 3D printer is a professional additive manufacturing system that employs Digital Light Processing (DLP) technology to fabricate high-precision ceramic components for industrial and commercial production.
Industry DLP Ceramic 3D Printer Detailed Overview
1.Industrial Design
Engineered for continuous operation, high stability, and large-scale manufacturing, this type of system is intended for industrial environments rather than hobbyist or laboratory use. It complies with industrial requirements for accuracy, reliability, and scalability.
2.DLP (Digital Light Processing) Technology
A high-resolution UV projection system cures an entire layer of ceramic-loaded, photosensitive resin in a single exposure. Compared with laser-based printing methods, DLP enables higher printing speeds and superior dimensional accuracy.
3.Ceramic-Specific Printing System
Optimized for processing advanced ceramic materials such as alumina, zirconia, and silicon carbide. Printed parts undergo debinding and sintering to achieve dense, high-performance ceramic structures.
Industry DLP Ceramic 3D Printer Key Advantages
1.Micron-level precision for producing intricate geometries
2.High productivity, suitable for batch and mass manufacturing
3.Large build capacity to support industrial-scale components
4.Efficient material usage and stable processing performance
5.Excellent repeatability and consistent part quality
Industry DLP Ceramic 3D Printer Typical Applications
1.Aerospace: Lightweight, high-temperature-resistant ceramic parts
2.Automotive: Sensor housings and insulating components
3.3C Industry: High-precision structural and functional parts
4.Medical and Dental: Ceramic implants and medical devices
5.Precision Tooling: Molds and specialized tooling components
Industrial DLP ceramic 3D printer is an advanced manufacturing solution that integrates high-speed printing, high accuracy, and specialized ceramic processing, making it well suited for the demands of modern industrial production.
