product description
Device Parameters
________________

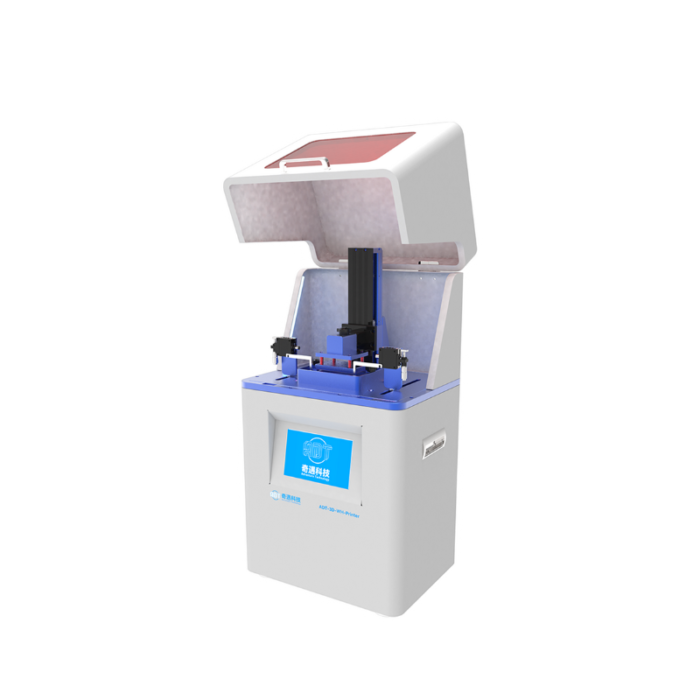

Equipment name | DLP ceramic 3D printing equipment | |
Equipment type | ADT-3D-WH-Printer-96-50 | ADT-3D-WH-Printer-144-81 |
Equipment size | 410*340*765mm | |
Formating space | 96*54*120mm | 144*81*120mm |
Single spot size | 50μm | 75μm |
Theoretical maximum surface power | 30mW/cm^2 | 15mW/cm^2 |
Formating mechanism | DLP(Digital Light Processing) | |
Resolution ratio | 1920*1080 | |
UV wavelength | 405nm | |
Curing power | 1-100% adjustable | |
Minimum layer thickness can be set | 2μm | |
Slurry volume to start | 20mL | |
Print rate | ≥150 layer/hour | ≥130 layer/hour |
Adaptation material | Mainly used for printing silicon oxide ceramic slurry, compatible with various photosensitive resin materials | |
Forming method | Bottom up molding | |
Printing process
_______________
8x anti-aliasing
