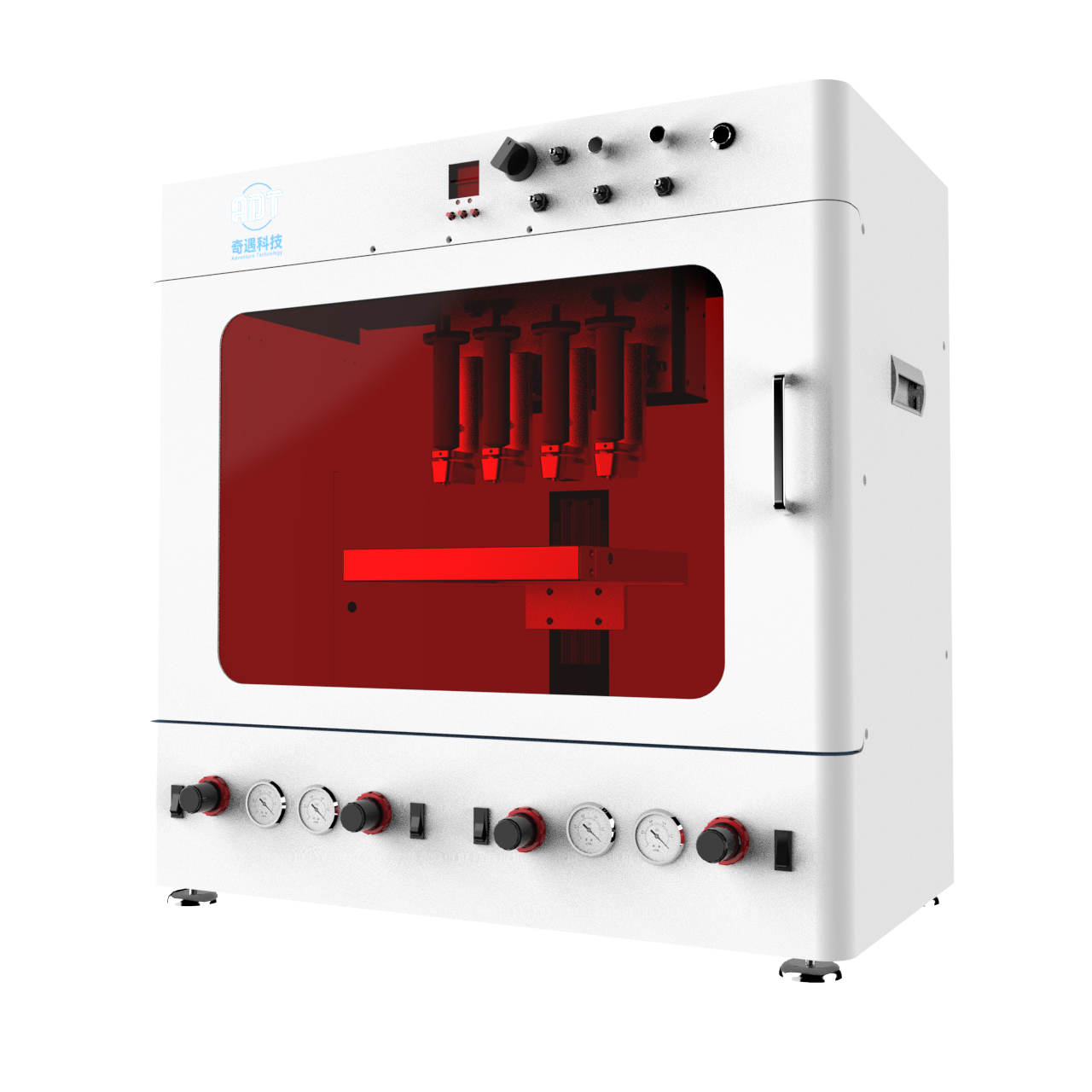

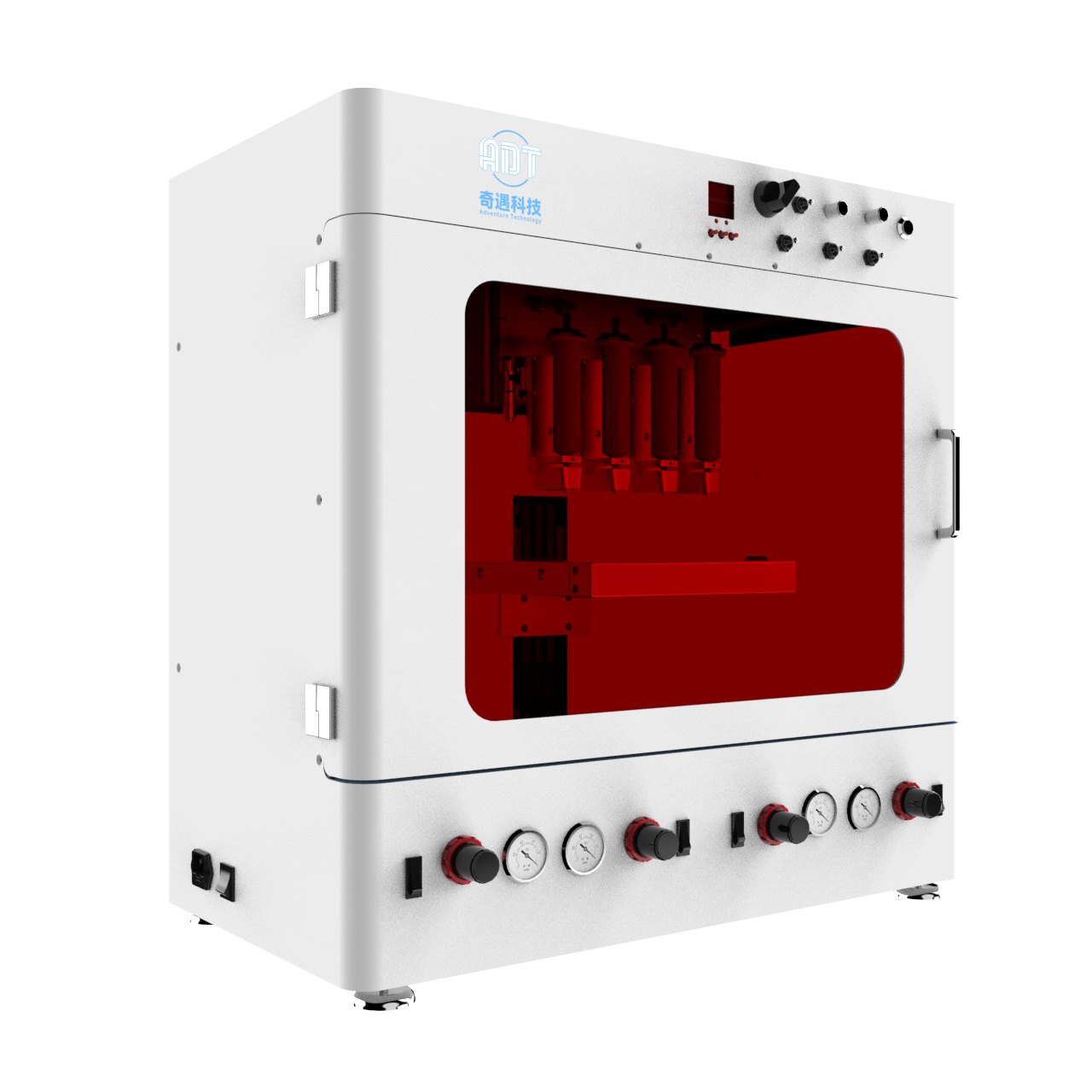

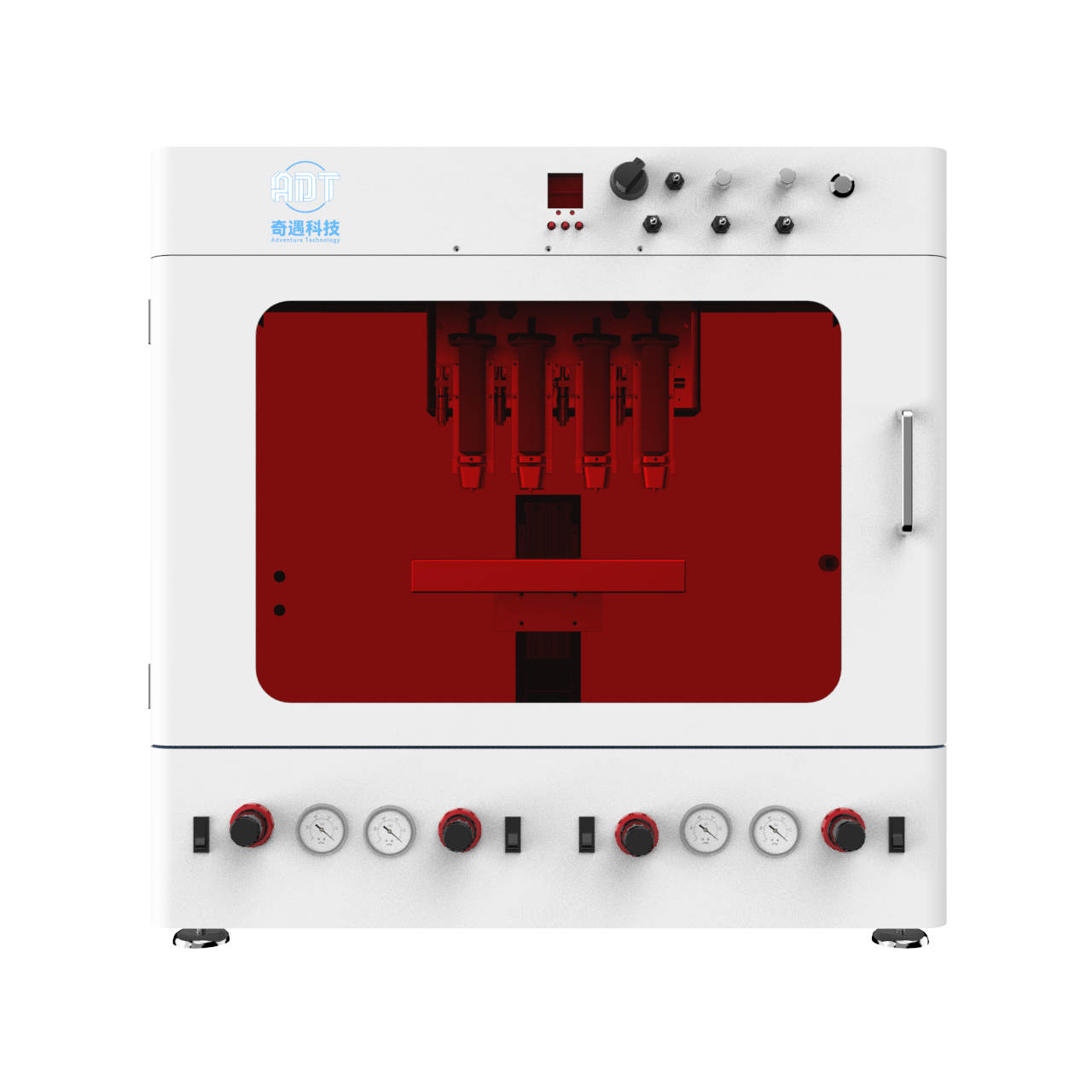

Direct Writing 3D Printer Plus Version
- 1
Intelligent 3D/4D Print Path Planning
Self-developed “ADT-Slicer” and “CAD-Slicer” software for easy 3D and 4D printing.
- 2
Multi-Material Printing
Four nozzles enable the use of more materials for printing and research.
- 3
More Custom Options
Choose from various print head types, CCD panoramic cameras, UV sterilization, and filtration systems for tailored configurations.
Why Choose Our Ceramic 3D Printing Solutions
Precision Printing
Achieve unparalleled accuracy in ceramic 3D printing for complex geometries and intricate designs.
Dental Printing
Create precise dental restorations, implants, and prosthetics with advanced ceramic 3D printing.
Medical Ceramics
Produce biocompatible ceramic components for medical implants and surgical tools.
High-Quality Materials
Utilize advanced ceramic materials for durable and high-performance components.
Eco-Friendly
Sustainable printing methods reduce waste and environmental impact.
Versatile Applications
From aerospace to medical, our technology supports diverse industry needs.
Product Introduction
Self-Developed Control Software
Equipped with our proprietary ADT-Slicer software for precise control, allowing for "one-stroke forming" to achieve efficient and stable printing results. Paired with the CAD-4D printing engine for easy implementation of 4D printing.
Supports Multi-Material Printing
Supports multi-material printing, ideal for material research in academic settings. Capable of printing biological tissues, cells, biocompatible materials, and ceramics. Users can select various material combinations for material validation and performance testing in research projects, flexibly meeting laboratory printing needs.
Multi-functional Extrusion Nozzle
The multifunctional extrusion nozzle combines three features: high-precision pneumatic control, localized heating of the print head, and UV light curing. It supports stable extrusion of various materials, meeting researchers' needs for different materials in experiments and ensuring efficient and stable material deposition.
Printing Case
For more case and model information, please contact us
| Equipment name | Direct Writing 3D Printer-Plus Version | |
|---|---|---|
| Equipment type | ADT-3D-LB-Printer-Plus | |
| Equipment size | 700*380*680mm | |
| Formating space | 120*120*120mm | |
| Motor type | Dc servo-silent | |
| X/Y axis transmission structure | GT2 timing belt (Preload) | |
| Z axis transmission structure | Mute module | |
| Guide rail model | MGN12 | |
| Repeatability | ±50μm | |
| XY linewidth motion resolution | ≤5μm | |
| Layer thickness resolution | ≤15μm | |
| Number of extruder heads | 4 | |
| Printing Nozzle (Optional) | Low-Viscosity Piezoelectric Jetting Printhead, High-Temperature Piezoelectric Jetting Printhead, High-Precision Screw Printhead | |
| Printing Nozzle (Optional) | CCD Panorama | |
| Base heating | RT-80°C | |
| Base refrigeration | -5°C (room temperature ≤20°C, humidity ≤40%RH) | |
| Visual Identity System | ADT-Slicer cycle slicing engine technology | |
| 4D Printing | CAD routing technique | |
| Ultraviolet sterilization | 253nm UV light | |
| Filtration system | HEPA filtration | |

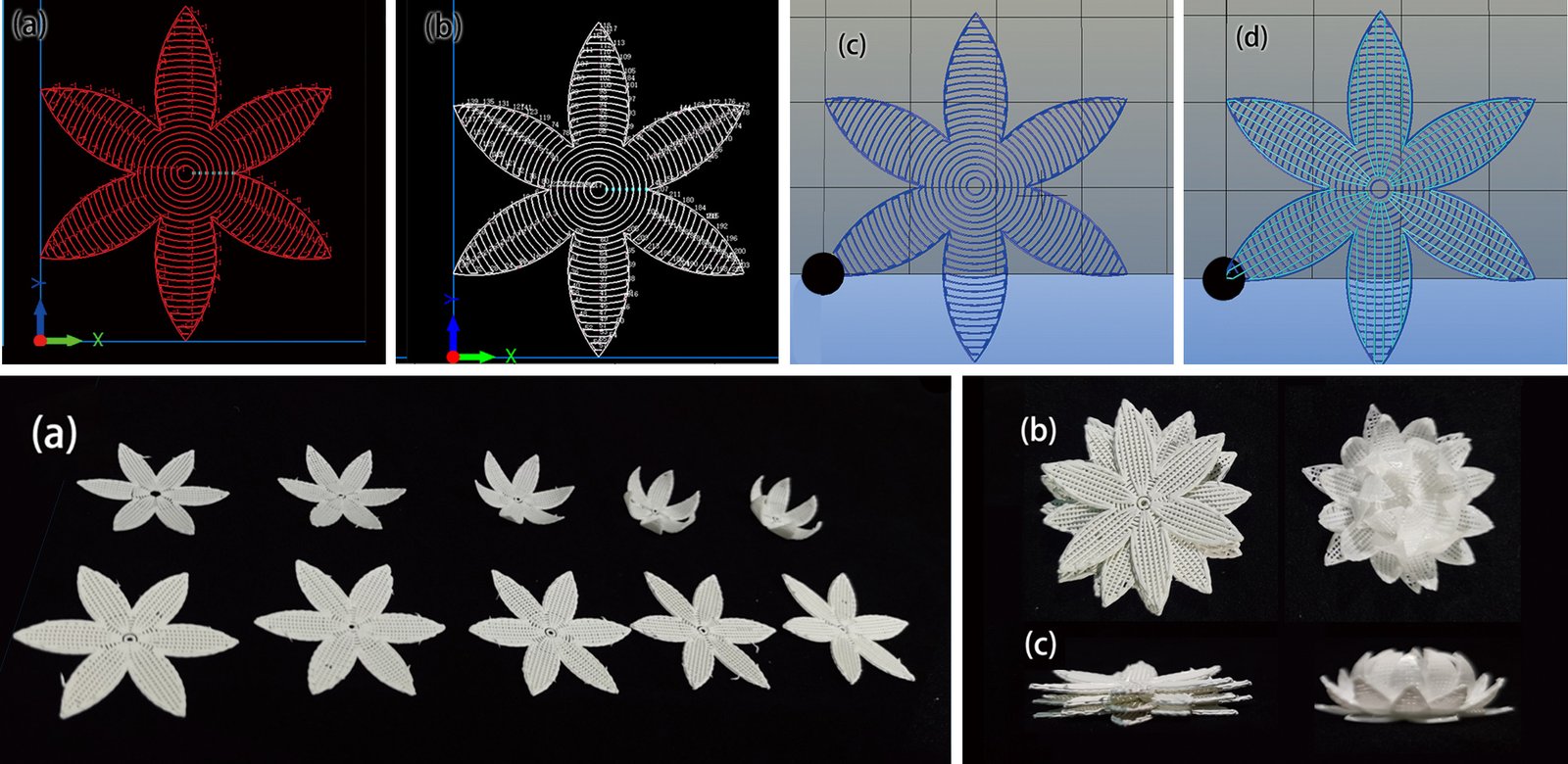

Ceramic 4D Printing
Constructing Magnetic Field Controlled 4D Photonic Crystals
Magnetic Field-Controlled 4D Photonic Crystals via Adventure-3D-LB-Printer Fine Direct Write 4D Printing

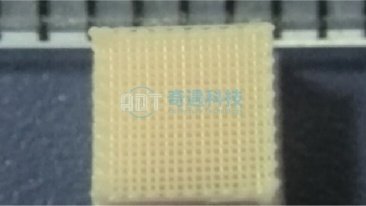

Constructing μm-Scale THz Photonic Crystals
μm-Scale Photonic Crystals Fabricated by Adventure-3D-LB-Printer Fine Direct Write 3D Printing
