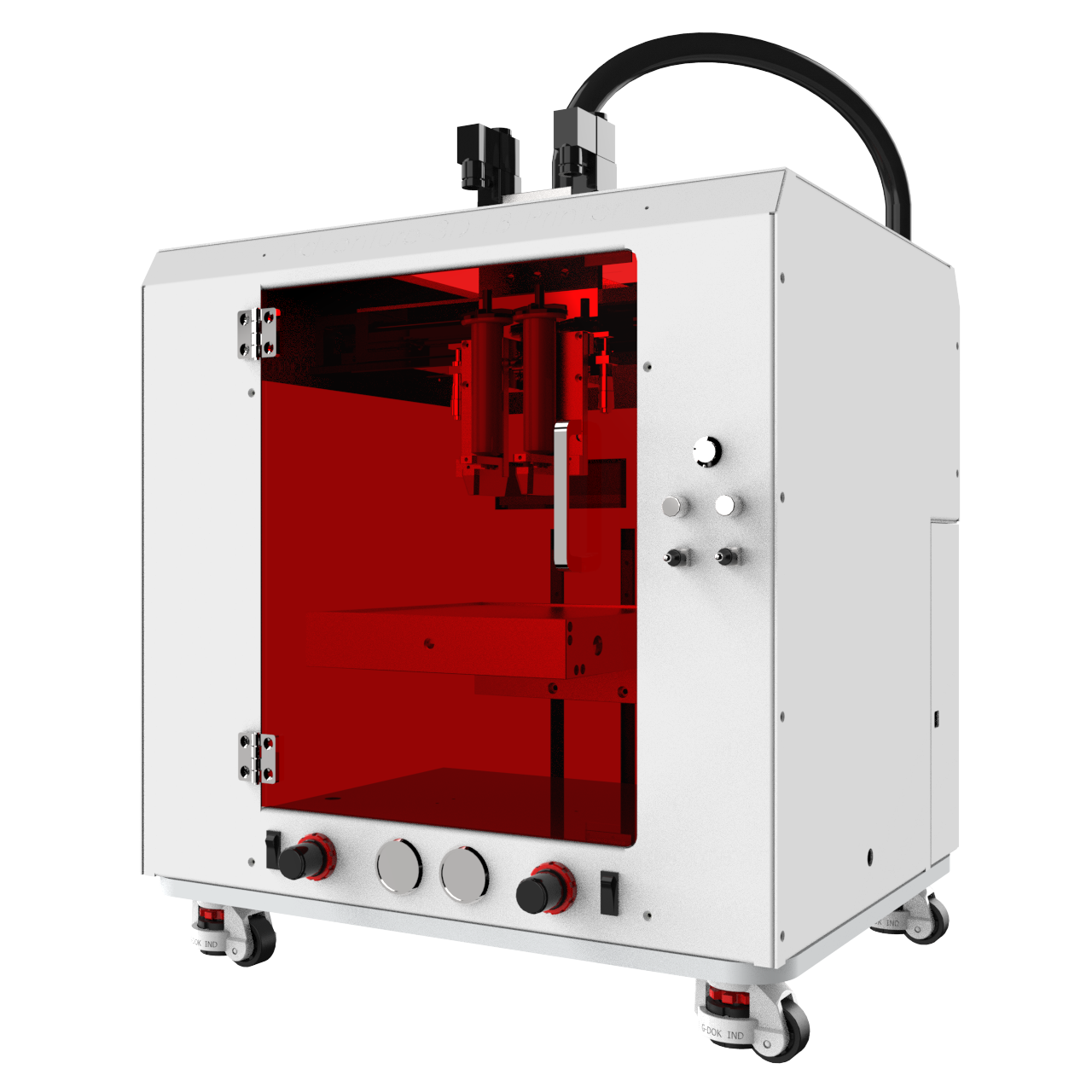

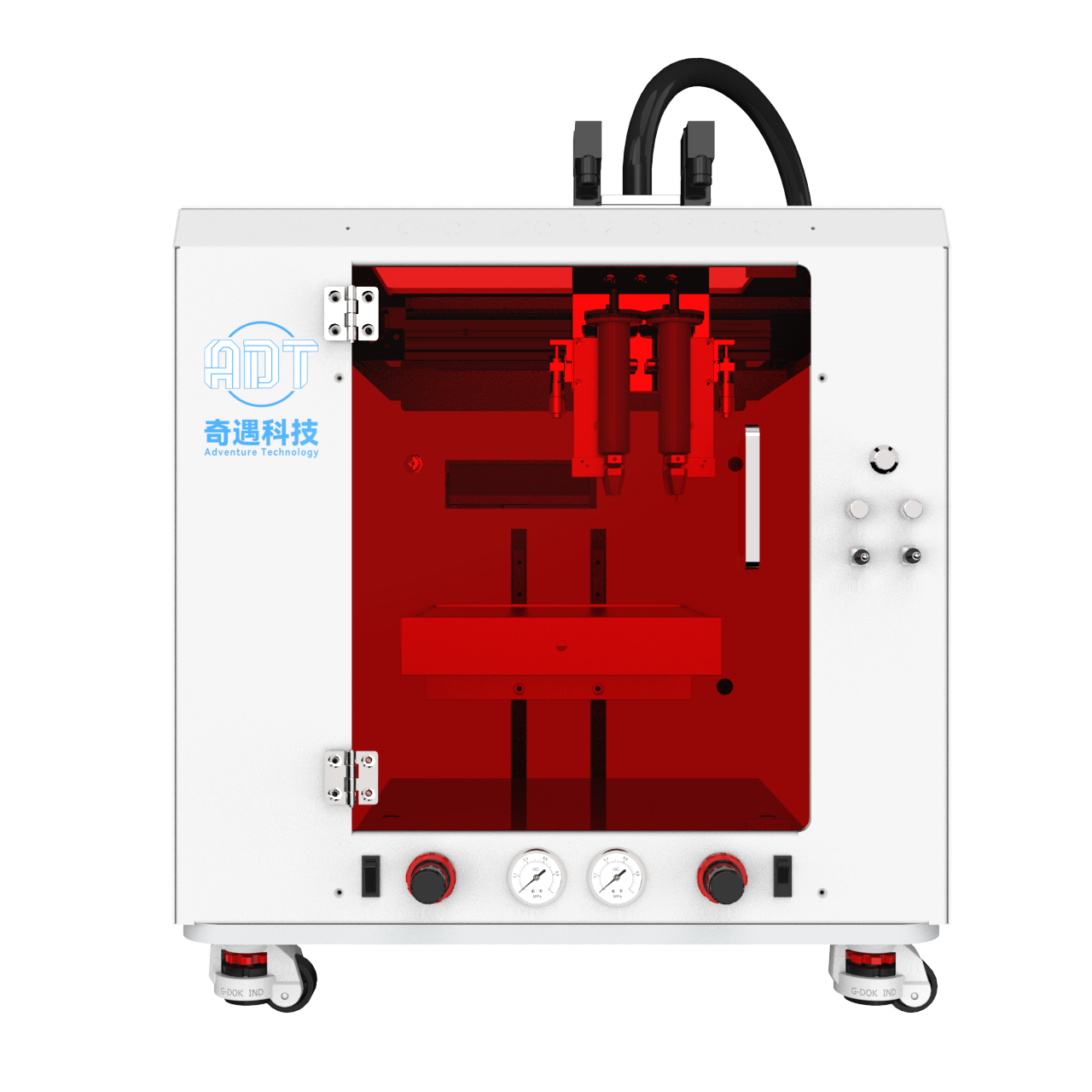

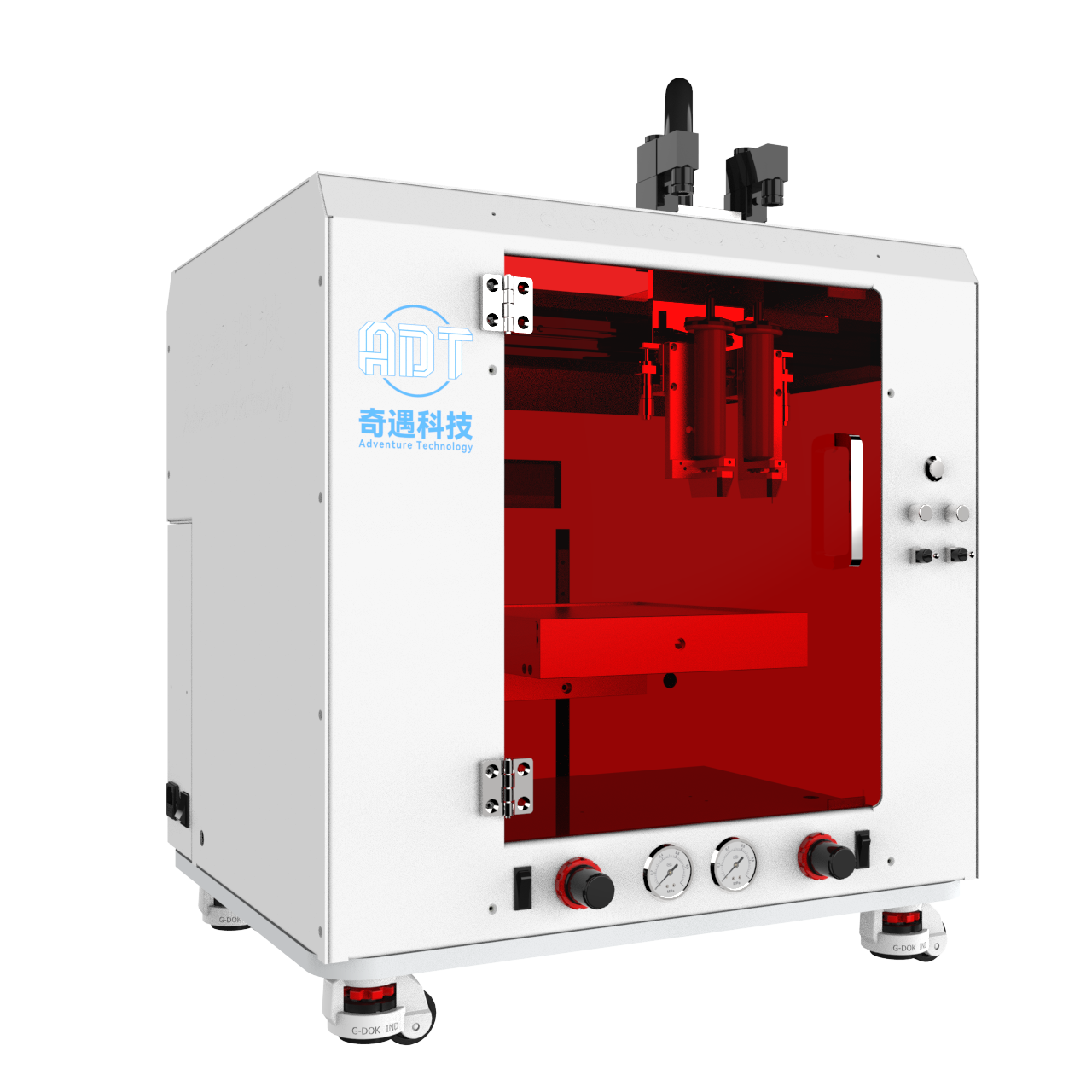

Direct Writing 3D Printer - Standard Version
- 1
Classic Printing Technology
Utilizes internationally recognized moldless Direct Ink Writing (DIW) technology.
- 2
Intelligent 3D/4D Print Path Planning
Self-developed “ADT-Slicer” and “CAD-Slicer” software for easy 3D and 4D printing.
- 3
Higher Precision
Improved repeatability and motion resolution.
- 4
Large Print Size
Maximum dimensions of 150 x 150 x 150 mm, enabling large sample printing.
- 5
Wide Material Compatibility
Compatible with ceramics, biomaterials, silicone, etc.
making it a powerful tool for material research.
Why Choose Our Ceramic 3D Printing Solutions
Precision Printing
Achieve unparalleled accuracy in ceramic 3D printing for complex geometries and intricate designs.
Dental Printing
Create precise dental restorations, implants, and prosthetics with advanced ceramic 3D printing.
Medical Ceramics
Produce biocompatible ceramic components for medical implants and surgical tools.
High-Quality Materials
Utilize advanced ceramic materials for durable and high-performance components.
Eco-Friendly
Sustainable printing methods reduce waste and environmental impact.
Versatile Applications
From aerospace to medical, our technology supports diverse industry needs.
Product Introduction
Self-Developed Control Software
Equipped with our proprietary ADT-Slicer software for precise control, allowing for "one-stroke forming" to achieve efficient and stable printing results. Paired with the CAD-4D printing engine for easy implementation of 4D printing.
Higher Precision
Compared to the entry-level version, the standard version offers higher repeatability, ensuring exceptional precision for each print. It is suitable for high-end research and applications that require strict accuracy.
Multi-Material Printing
Supports complex multi-material printing tasks, allowing the use of various materials to print multiple models in a single job. This capability meets laboratory needs for research ranging from biological sciences to ceramic materials.
Printing Case
For more case and model information, please contact us
| Direct Writing 3D Printer-Standard Version | ||
|---|---|---|
| Equipment name | Direct Writing 3D Printer-Standard Version | |
| Equipment type | ADT-3D-LB-Printer-0015 | ADT-3D-LB-Printer-0005 |
| Equipment size | 590×470×750mm | 590×470×750mm |
| Forming space | 120×120×120mm | 150×150×150mm |
| Motor type | Dc servo-silent | |
| Transmission structure | C-level mute module | P-level mute module |
| Guide rail model | Embedded integrated guide | |
| Repeatability | ±15μm | ±5μm |
| XY linewidth motion resolution | ≤2μm | ≤0.5μm |
| Layer thickness resolution | ≤2μm | |
| Number of extruder heads | 2 | |
| Base heating | Up to 60°C | Up to 80°C |
| Extrusion head heating | Up to 60°C | Up to 80°C |
| UV curing | - | √ |
| UV light source power PWM modulation | - | √ |
| UV light source power | - | Standard configuration 0.6W (optional 1.5W) |
| UV light selectable | - | Standard configuration 405nm (optional 365/385nm) |
Equipment Printing Process
Constructing Magnetic Field Controlled 4D Photonic Crystals
Magnetic Field-Controlled 4D Photonic Crystals via Adventure-3D-LB-Printer Fine Direct Write 4D Printing
Constructing μm-Scale THz Photonic Crystals
μm-Scale Photonic Crystals Fabricated by Adventure-3D-LB-Printer Fine Direct Write 3D Printing
