DLP 3D Printing Nanocomposites Reinforced with Tungsten Carbide

Carbide nanocomposites, particularly those reinforced with tungsten carbide (WC) nanoparticles, represent a breakthrough in advanced materials for DLP 3D printing. By integrating high-performance carbide particles into photopolymer resins using ceramic 3D printers, manufacturers can achieve superior mechanical strength, thermal stability, and functional properties in complex geometries unattainable through traditional methods.

At Adventure Tech (ADT Ceramic 3D Printing), our cutting-edge DLP 3D printers enable precise fabrication of carbide nanocomposites for demanding applications in aerospace, tooling, and high-wear environments. Leveraging vat photopolymerization technology, our systems deliver high-resolution parts with uniform nanoparticle dispersion—critical for optimal performance.

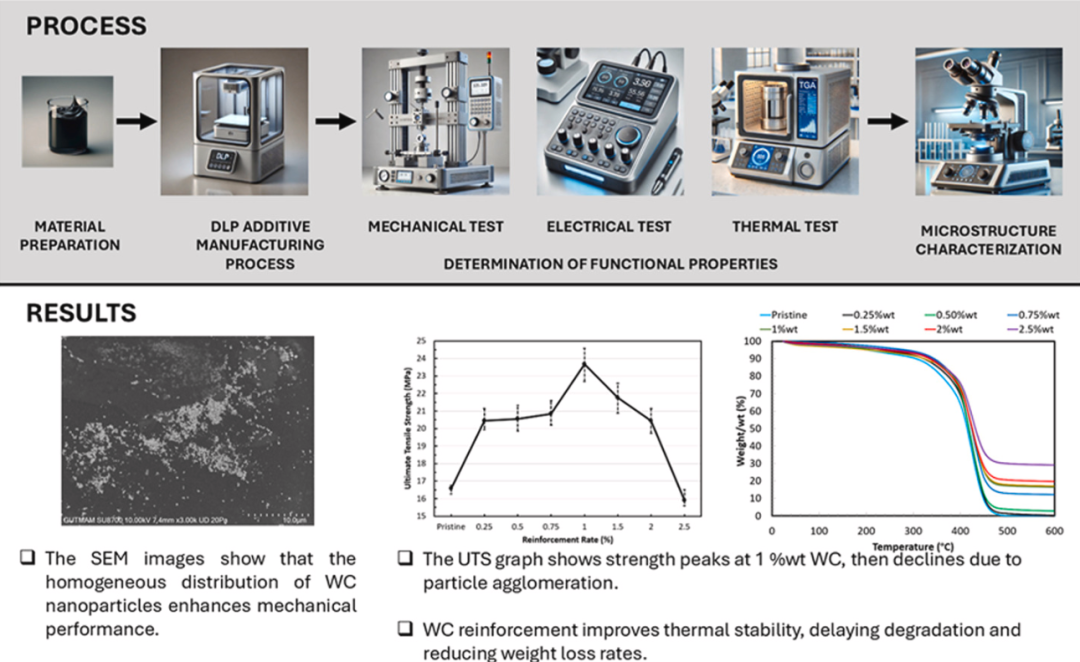

Comprehensive process and results summary for WC-reinforced photopolymer nanocomposites fabricated via DLP 3D printing.

Research Insights: Tungsten Carbide Reinforcement in Photopolymer Nanocomposites

A recent study published in Ceramics International (DOI: 10.1016/j.ceramint.2025.03.368) by Professor Nurullah Yüksel and team at Gazi University explores tungsten carbide reinforcement in photopolymer nanocomposites fabricated via DLP 3D printing. This work provides valuable guidance for developing particle-reinforced composites using ceramic 3D printer technology.

The research systematically investigates WC nanoparticle loadings from 0.25 to 2.5 wt% dispersed in photopolymer resin. Key characterizations include:

• Mechanical testing (tensile, microhardness, impact)
• Thermal analysis (TGA/DTG)
• Electrical conductivity (four-point probe)
• Microstructural analysis (SEM)

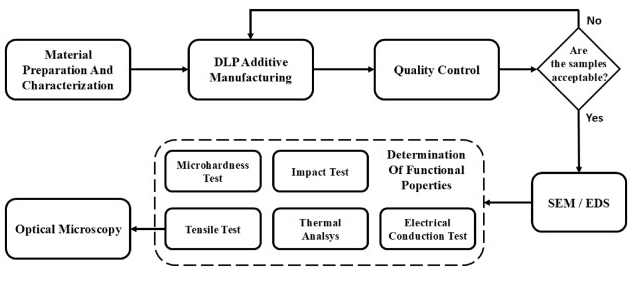

Experimental workflow ensuring high-quality carbide nanocomposite samples via DLP 3D printing.

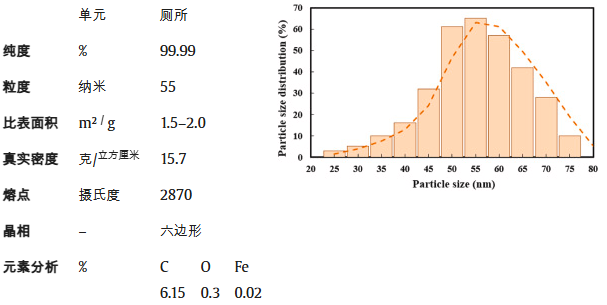

WC nanoparticle characteristics, including purity, size distribution, and composition—essential for uniform dispersion in DLP resins.

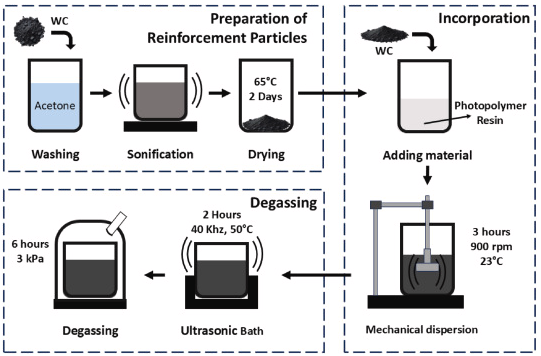

Optimized slurry preparation process for achieving homogeneous WC nanoparticle distribution in photopolymer resins.

Key Findings on Carbide Nanocomposite Performance

• Optimal Reinforcement: 1 wt% WC loading yielded the best results, with uniform dispersion increasing tensile strength by 42.9% and significantly enhancing load-bearing capacity.
• Microhardness Improvement: A 21.86% increase at optimal loading, though higher concentrations led to plateauing due to agglomeration.
• Impact Resistance: WC nanoparticles promoted localized hardening, improving energy absorption—even at higher loadings—for dynamic applications.
• Agglomeration Effects: Above 1.5 wt%, particle clustering reduced strength and increased brittleness, underscoring the need for precise dispersion control.
• Thermal and Electrical Properties: Reinforced composites showed enhanced stability and conductivity, expanding potential uses.

SEM analysis confirmed that uniform nanoparticle distribution is essential for maximizing mechanical enhancements in carbide nanocomposites produced by DLP 3D printing.

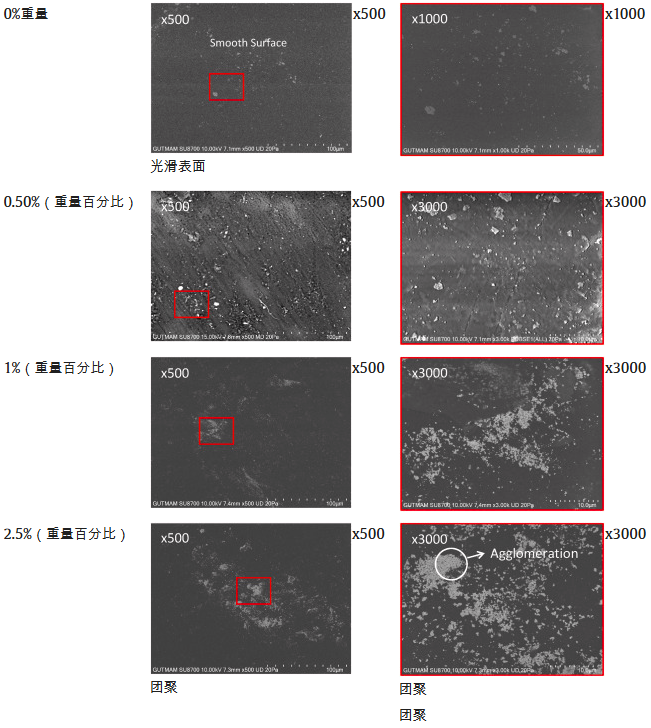

Surface morphology evolution with WC reinforcement, highlighting agglomeration effects critical for DLP 3D printing optimization.

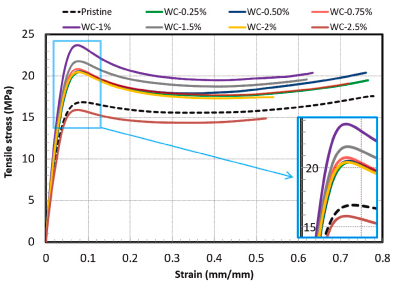

Stress-strain behavior demonstrating peak performance at 1 wt% WC reinforcement.

Fracture morphologies illustrating toughening mechanisms and failure modes in WC-reinforced parts.

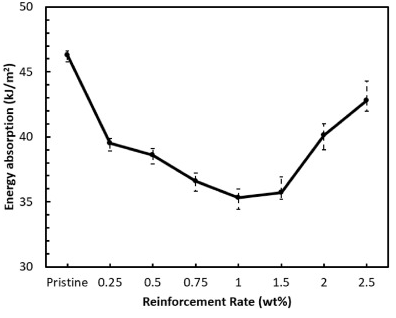

Impact resistance trends, showing sustained performance despite higher loadings.

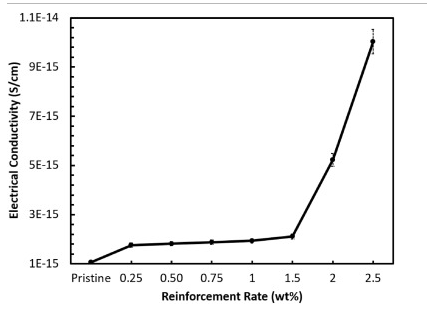

Enhanced electrical properties enabled by conductive WC networks in DLP-printed nanocomposites.

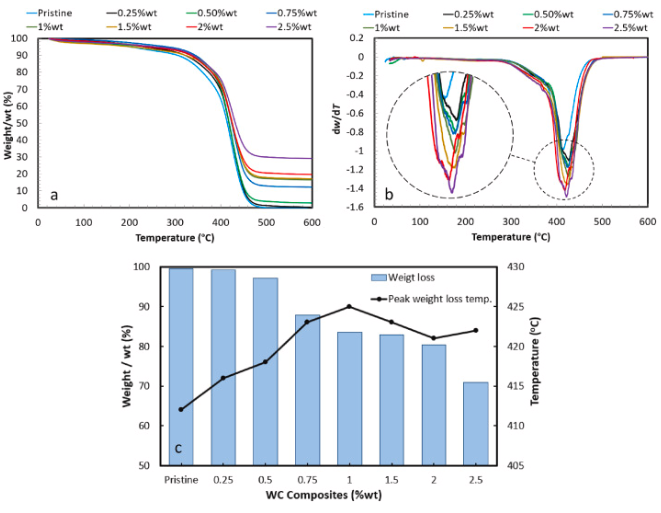

Improved thermal degradation resistance and stability with optimal WC addition.

Why DLP 3D Printing Excels for Carbide Nanocomposites

DLP 3D printers offer superior resolution and material compatibility compared to other additive methods, making them ideal for incorporating functional nanoparticles like tungsten carbide. This enables:

• Complex, near-net-shape parts with minimal post-processing
• Customized material properties through precise slurry formulation
• Scalable production for high-value applications

Adventure Tech’s ceramic 3D printers are engineered for exactly these challenges, supporting custom resin development and high-fidelity printing of carbide nanocomposites.
