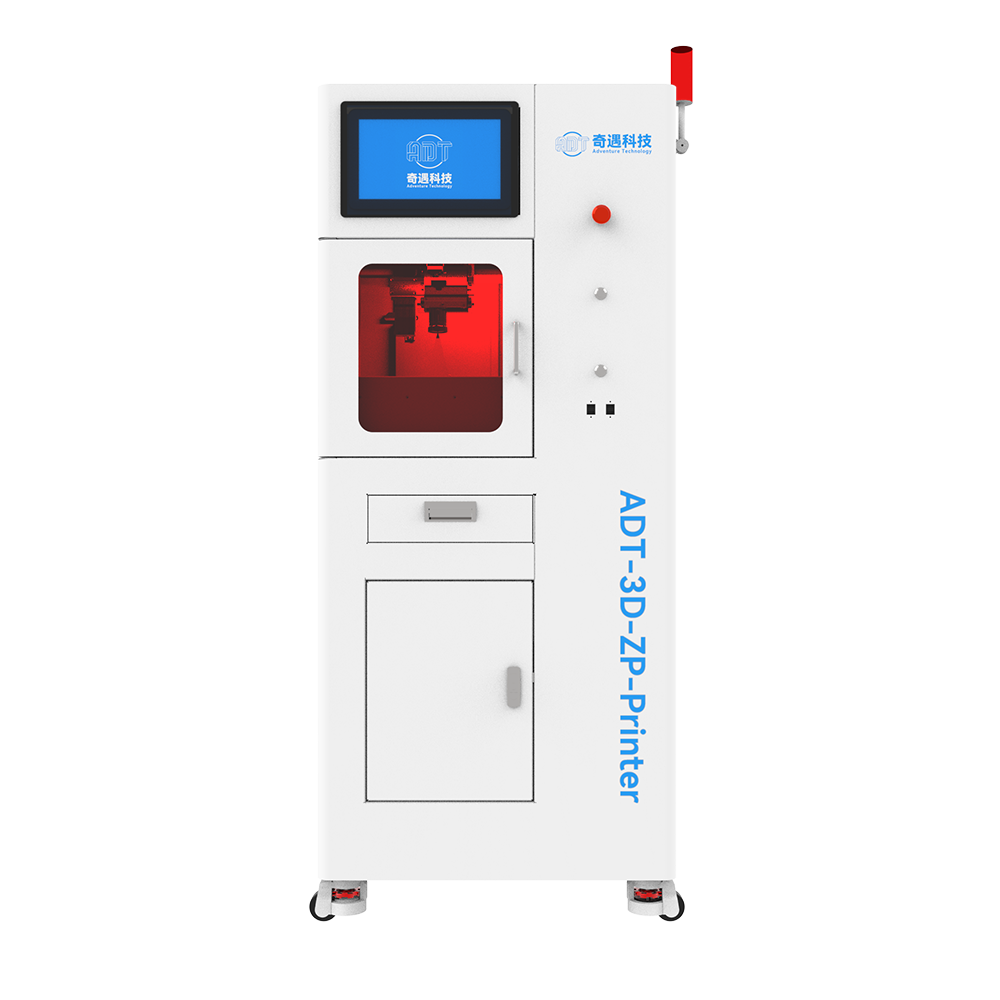

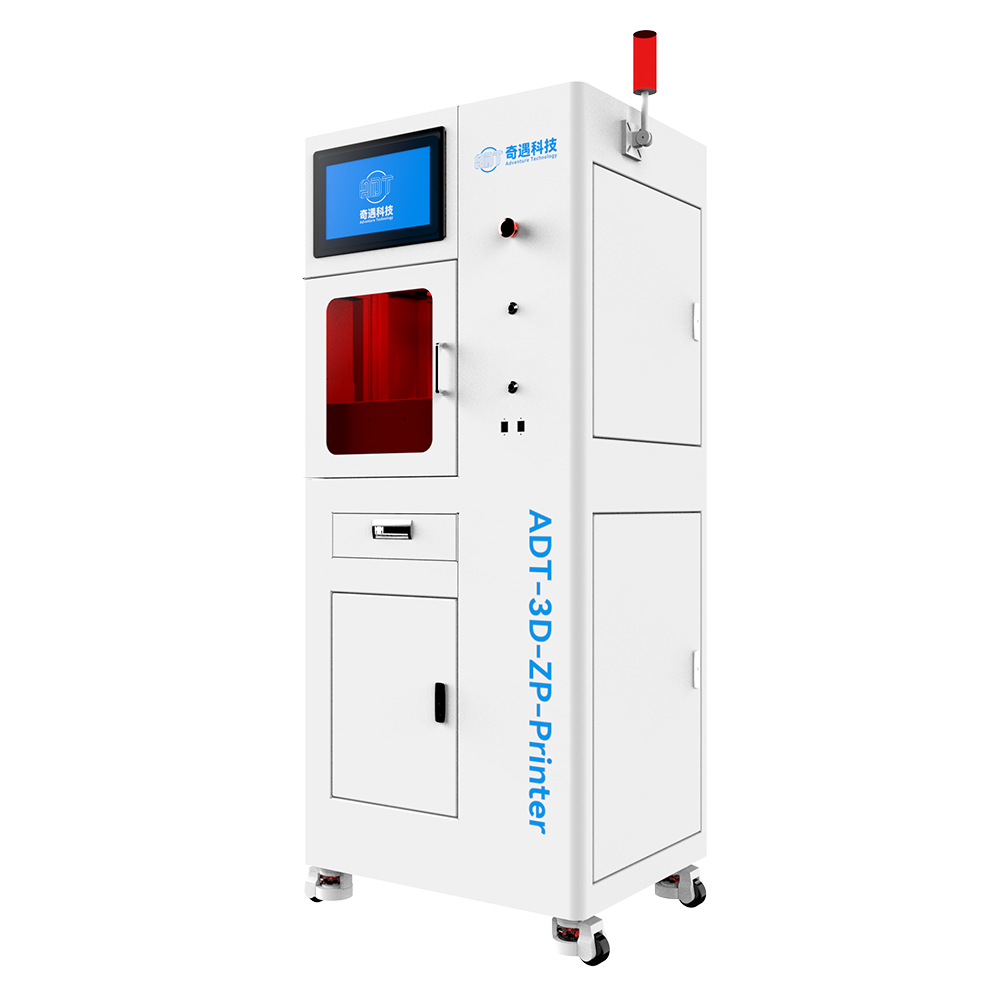

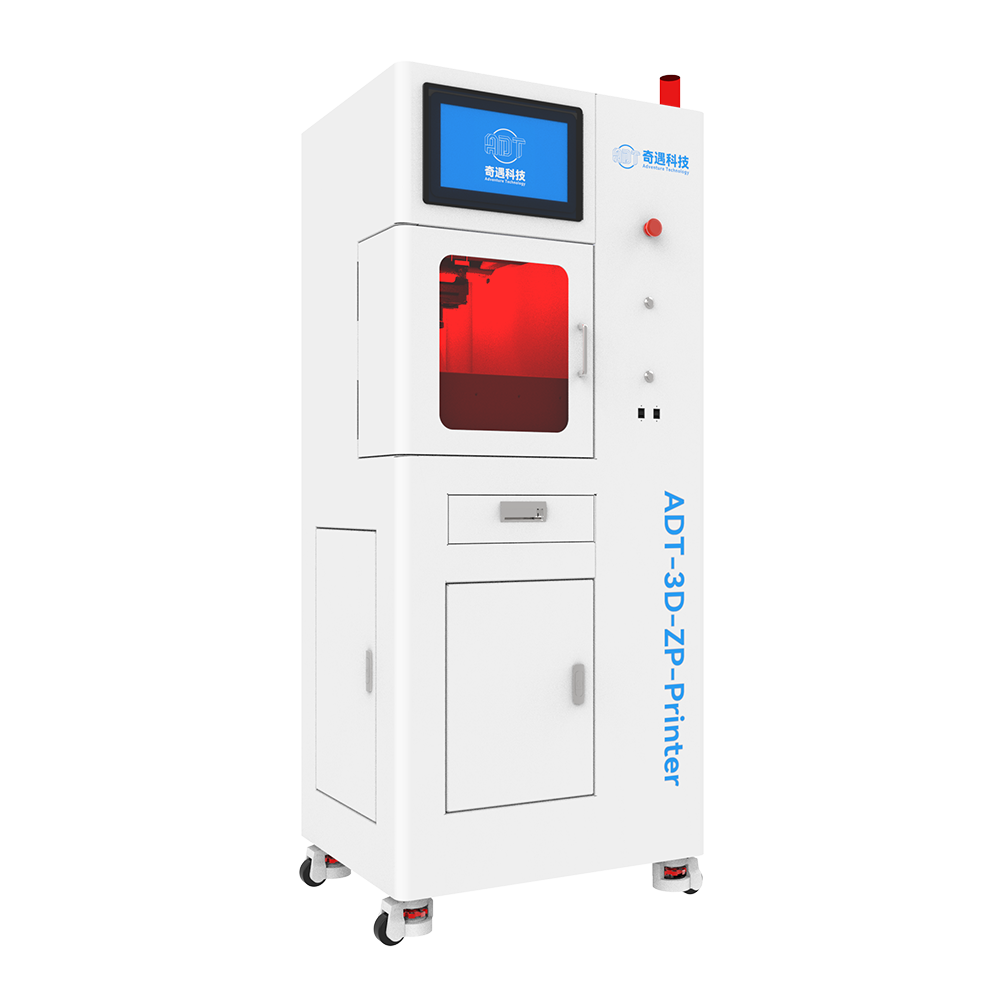

DLP Ceramic 3D Printer For Laboratory
- 1
High viscosity compatibility
Precision scraper ensures smooth leveling, accommodating high-viscosity ceramic materials.
- 2
Material savings
Dual-cylinder hopper structure requires only 80mL to start printing.
- 3
High optical precision
1080P UV light source, with optical distortion ≤0.1%, achieving optical precision up to 25μm.
- 4
High printing success rate
Upright sinking forming method effectively prevents "pulling," ensuring a higher success rate.
Why Choose Our Ceramic 3D Printing Solutions
Precision Printing
Achieve unparalleled accuracy in ceramic 3D printing for complex geometries and intricate designs.
Dental Printing
Create precise dental restorations, implants, and prosthetics with advanced ceramic 3D printing.
Medical Ceramics
Produce biocompatible ceramic components for medical implants and surgical tools.
High-Quality Materials
Utilize advanced ceramic materials for durable and high-performance components.
Eco-Friendly
Sustainable printing methods reduce waste and environmental impact.
Versatile Applications
From aerospace to medical, our technology supports diverse industry needs.
Product Introduction
High Material Compatibility

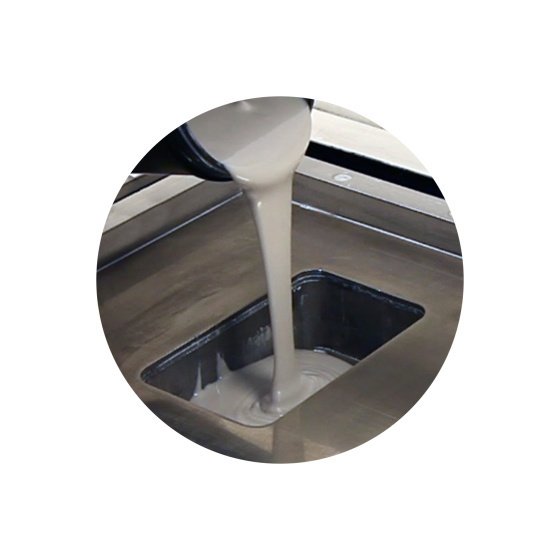

The DLP Ceramic 3D Printer for Laboratory is designed to handle a wide range of high-viscosity and paste-like ceramic slurries, making it ideal for advanced research and new material development. Verified materials include high-solid-content Al₂O₃, ZrO₂, SiC, piezoelectric ceramics such as BaTiO₃ and Pb(ZrTi)O₃, as well as HAP and TCP. The printer also supports self-developed ceramic materials, ensuring flexibility and versatility for various laboratory applications.
Saving Printing Materials

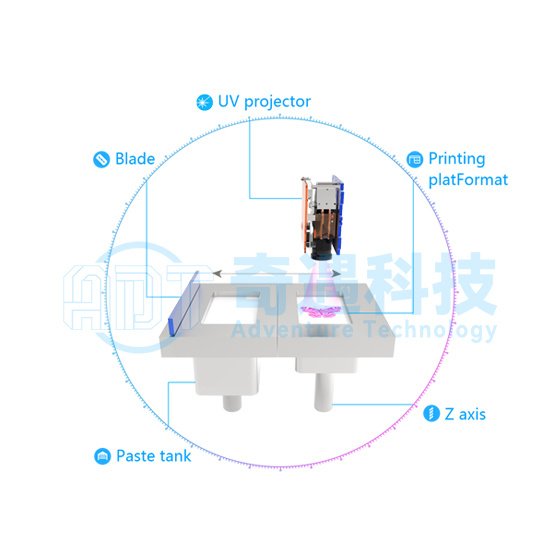

The DLP Ceramic 3D Printer features a dual-cylinder hopper structure with a one-feed-one-receive design. This innovative setup allows for flexible material feeding based on the model height, requiring as little as 80 mL to start printing. This significantly reduces material usage and development costs, making it an efficient choice for laboratory applications.
High Printing Accuracy

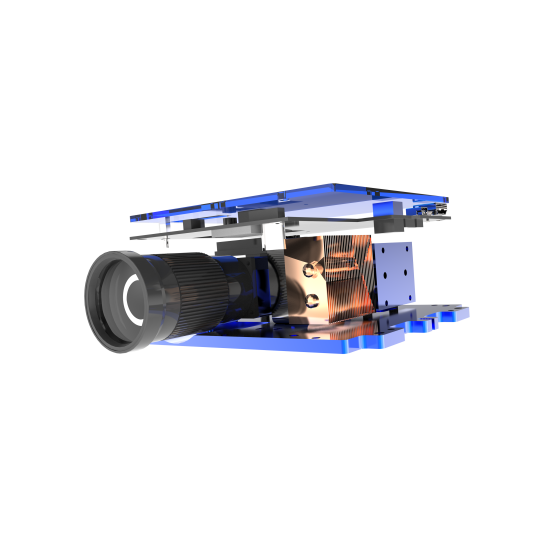

The DLP Ceramic 3D Printer features a high-precision UV light engine with an optical distortion of ≤ 0.1% and a wavelength of 405 nm. The vertically adjustable light engine achieves an optical precision up to 25 μm. Its top-mounted design ensures clear and sharp images by preventing blurriness caused by light passing through the release film and support glass.

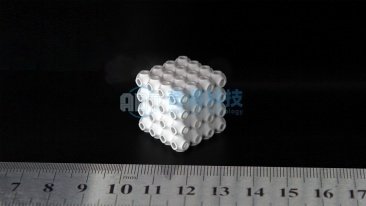

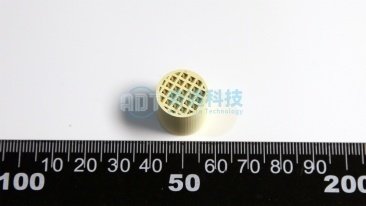

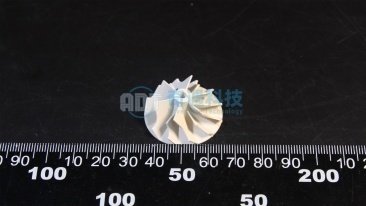

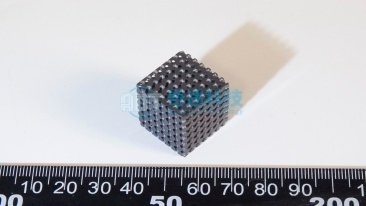

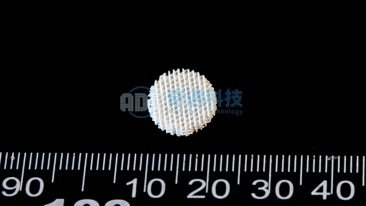

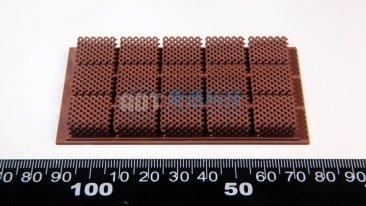

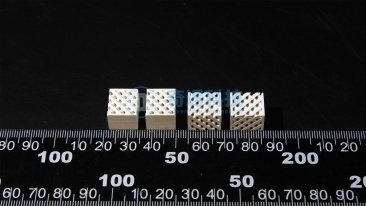

Printing Case
For more case and model information, please contact us
| Equipment Type | ADT-3D-ZP-Printer-48-25 | ADT-3D-ZP-Printer-67-35 | ADT-3D-ZP-Printer-96-50 |
|---|---|---|---|
| Equipment size | 835*640*1895mm | ||
| Forming Space | 48*27*90mm | 67*37.5*90mm | 96*54*90mm |
| Optical precision | 25μm | 35μm | 50μm |
| Resolution ratio | 1920*1080 | ||
| UV wavelength | 405nm | ||
| Print rate① | 300 layers/hour | ||
| Slurry Starting Volume② | 80mL | ||
| Printable Materials | Zirconia, Alumina, Silicon Carbide, Silicon Oxide, Hydroxyapatite, Barium Titanate, all photosensitive ceramic materials that can be UV curable, all kinds of photosensitive resin materials | ||
① Printing Speed: Full-area printing speed for alumina slurry.
② Slurry Starting Volume: The volume of material required to print the 1mm thickness sample.
