At ADT, we specialize in advanced alumina (Al₂O₃) ceramic 3D printing technology, providing innovative solutions for high-performance applications. This case study highlights our successful fabrication of a complex alumina ceramic ring using our proprietary ADT-3D-ZP-DLP-Printer-PRO series, demonstrating outstanding precision, mechanical strength, and thermal stability.

Project Overview

The alumina ceramic ring is designed for use in high-temperature, wear-resistant industrial environments. Key requirements included:

  • Exceptional hardness and durability

  • Excellent thermal resistance above 1500°C

  • Complex geometry with tight dimensional tolerances

  • Integrated internal features to support specific functions

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

Printing Equipment and Process

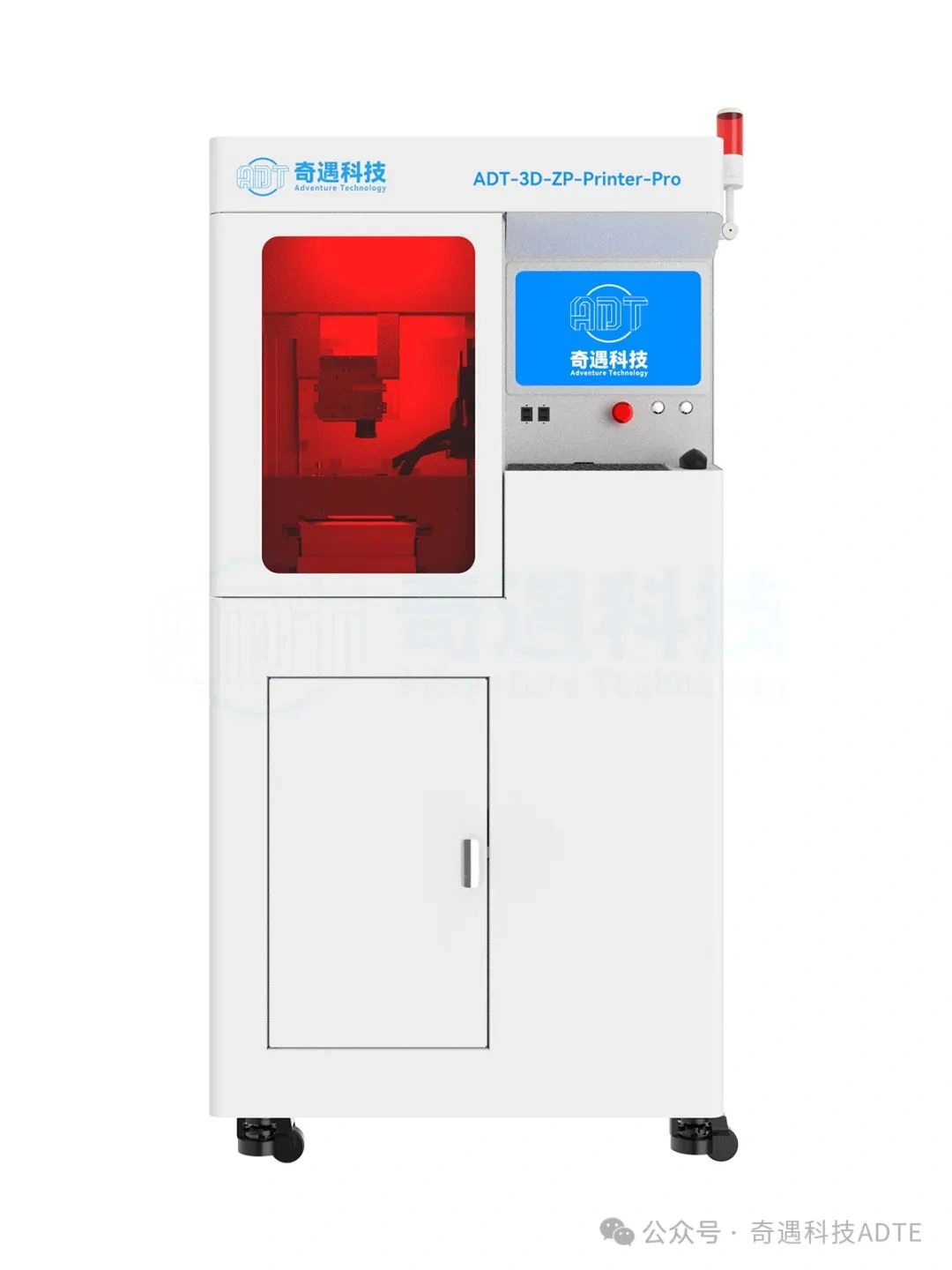

Using our ADT-3D-ZP-DLP-Printer-PRO, we achieved superior printing performance with the following parameters:

  • Printing speed: Over 600 layers per hour for efficient production

  • Light intensity: 28 mW/cm² with 1.3 seconds exposure time per layer

  • Coating speed: 100 mm/s ensuring smooth layer deposition

  • Layer resolution optimized for micron-level accuracy

The 3D printing workflow consisted of:

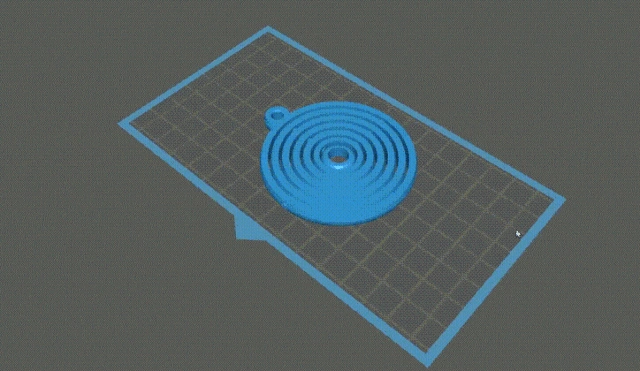

  1. 3D Modeling — Creating an optimized CAD model suitable for ceramic printing

  2. Printing — Layer-by-layer photopolymerization to form a precise green body

  3. Support Removal — Carefully detaching printing supports without damaging parts

  4. Cleaning — Removing uncured resin residues to ensure surface quality

  5. Sintering — High-temperature sintering to densify and strengthen the ceramic component

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

Final Results and Performance

The sintered alumina ceramic ring exhibited:

  • High mechanical strength and wear resistance

  • Stable performance under extreme thermal conditions

  • Accurate dimensions within industrial tolerance requirements

  • Ability to realize complex internal channels and features

This confirms the capability of ADT’s ceramic 3D printing to produce functional, high-precision alumina components suitable for demanding applications.

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

Printing Process / Sintering

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

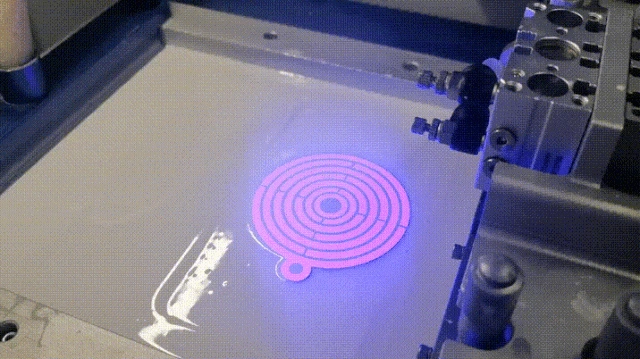

Light intensity: 28mW/cm², Exposure time: 1.3s, Coating speed: 100 mm/s.

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

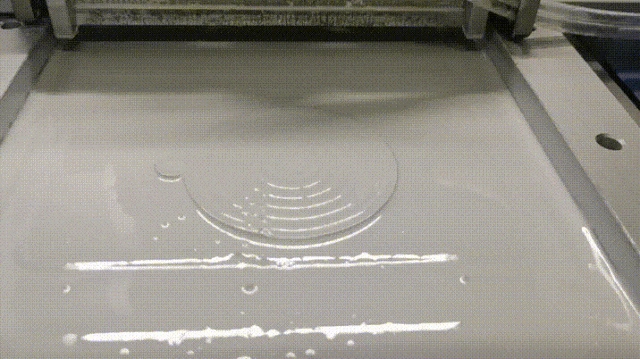

Complete roll-out

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

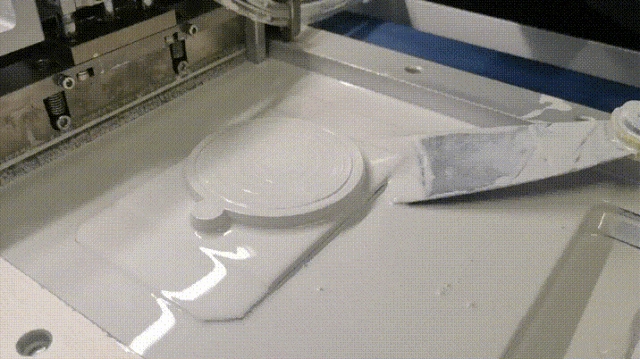

Removal process

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

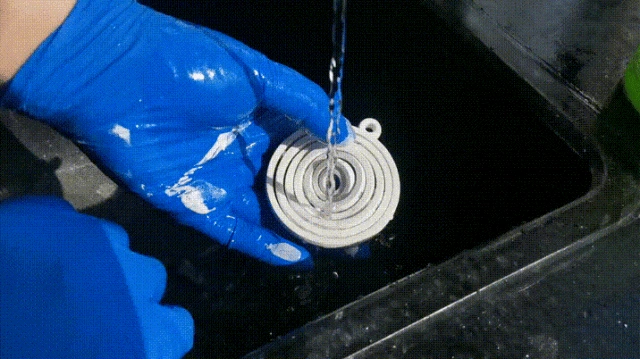

Cleaning process

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

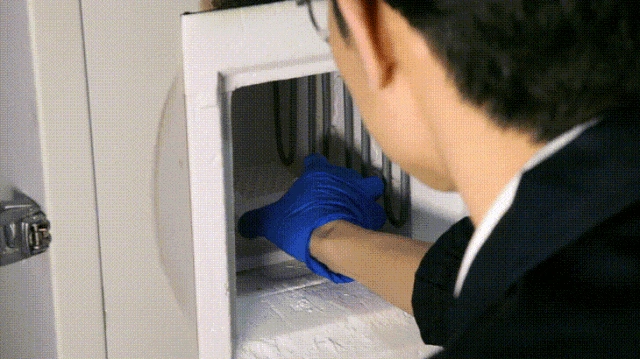

Sintering

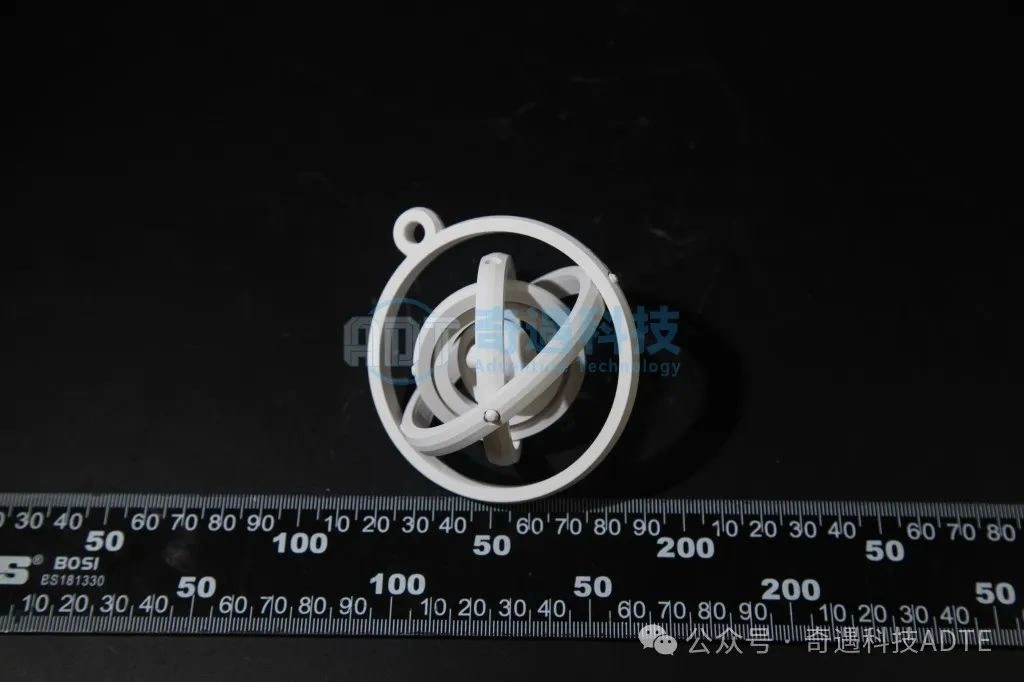

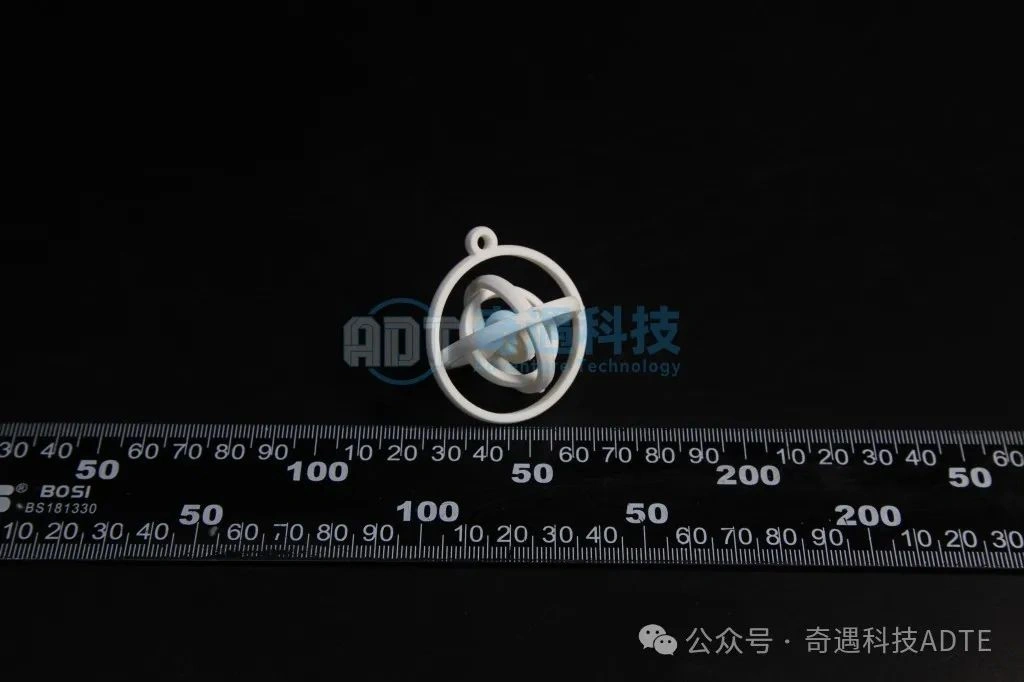

Finished Product Display

Alumina Ceramic 3D Printing Case Study | High-Precision Ceramic Manufacturing By ADT

Applications

Alumina ceramic 3D printed parts are widely used in:

  • Aerospace and mechanical components such as seals and bearings

  • Electrical and electronic insulation substrates

  • Medical implants including joint replacements and dental devices

  • Chemical processing equipment resistant to corrosion and wear

Contact ADT for Alumina Ceramic 3D Printing

Discover how ADT’s cutting-edge ceramic 3D printing solutions can accelerate your product development and enhance performance. Contact us today to discuss your project requirements.
