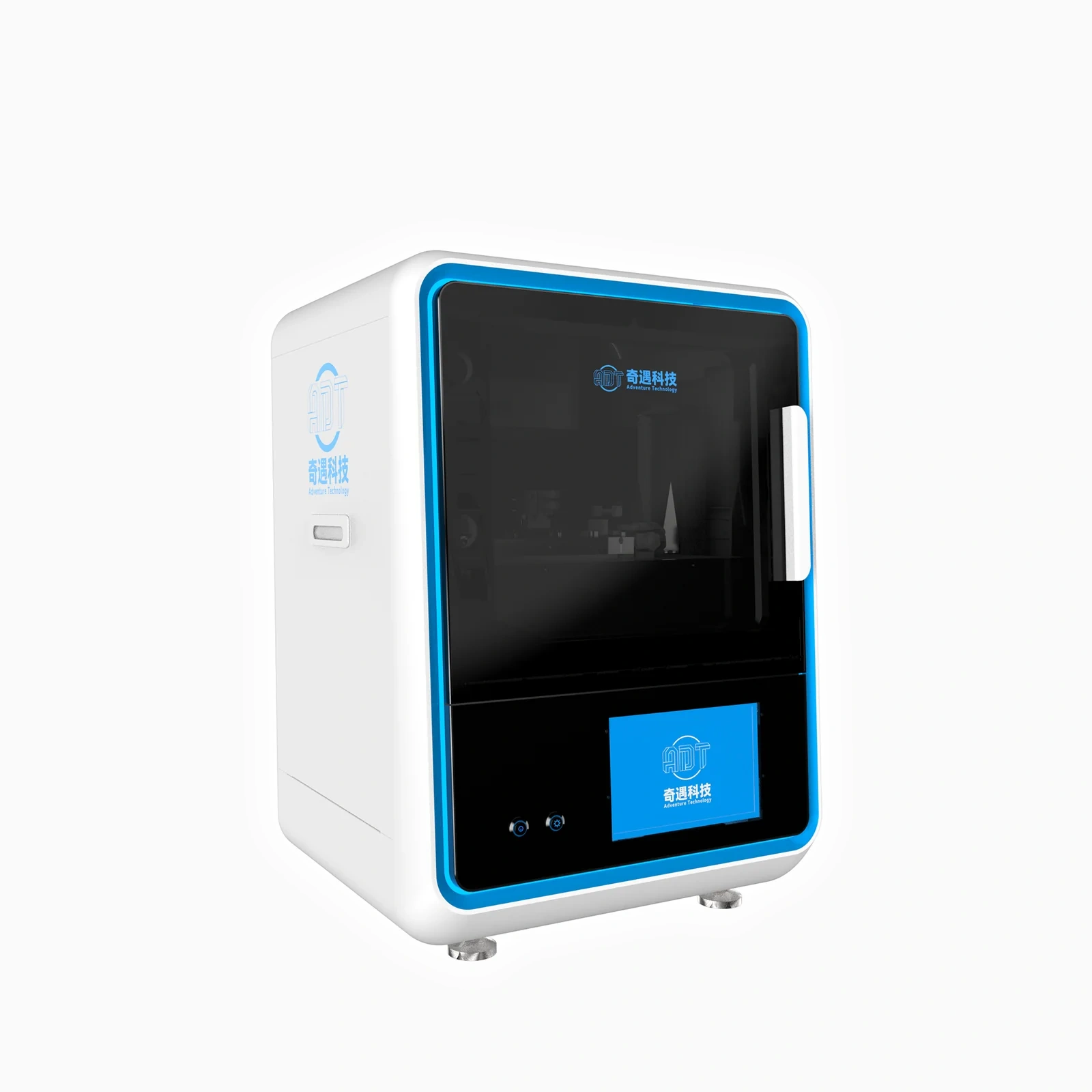

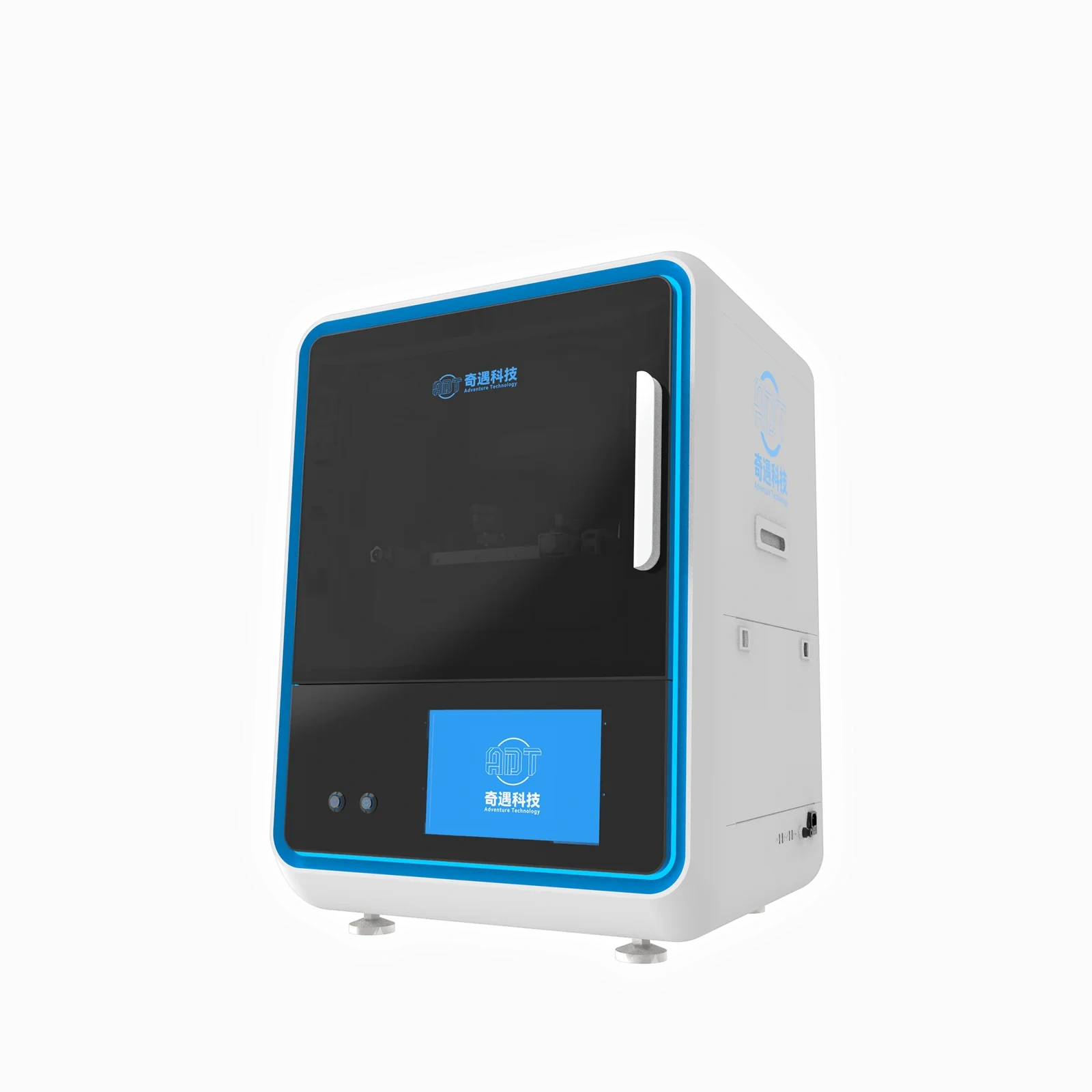

DLP Ceramic 3D Printer Standard

Research-level 50μm precision, industrial 700 layers/hour speed — for experimentation and mass production.

DLP Ceramic 3D Printer-Standard

Key Features

High material compatibility: prints ZrO₂, Al₂O₃, SiC, SiO₂, HAP, BaTiO₃ and all UV-curable ceramics & resins.
High efficiency: 700 layers per hour for full-area alumina printing, with high stability.
96×54×90 mm forming space: suitable for sample testing and small-batch production.

Application Areas

Dental Medical College Aviation Ceramics Biology

Application Cases

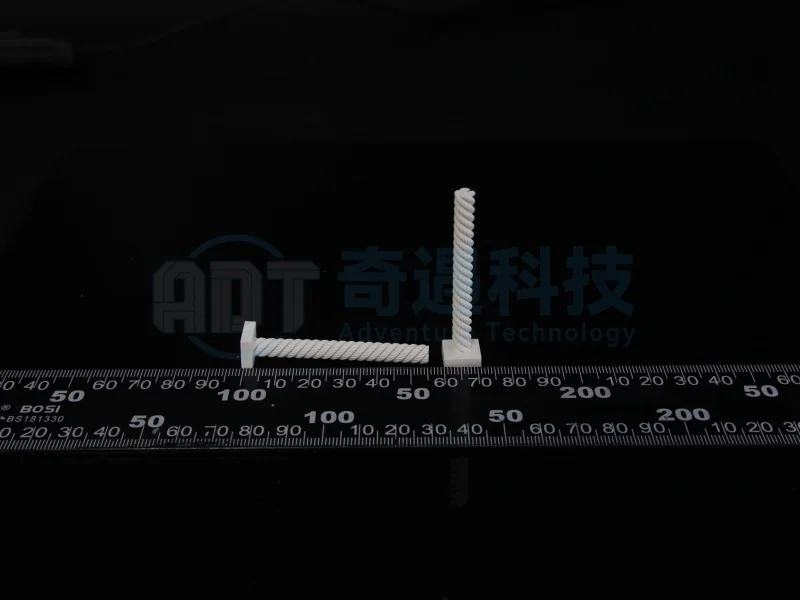

Printed DLP Standard Parts

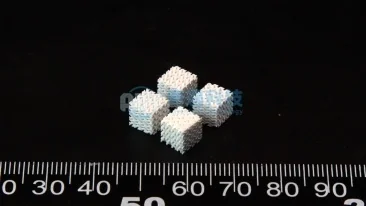

TCP - Block

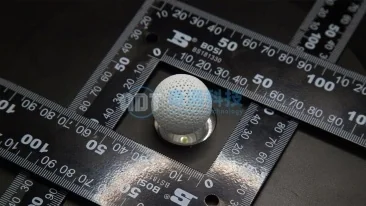

SiO₂ - Sphere

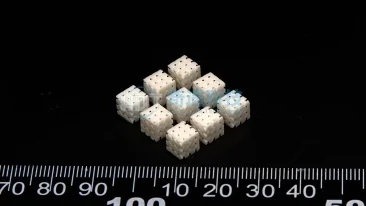

HA - Block

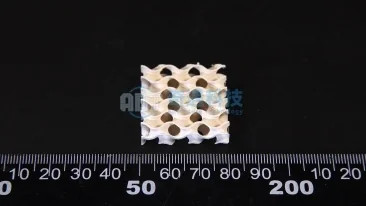

PZT - Block

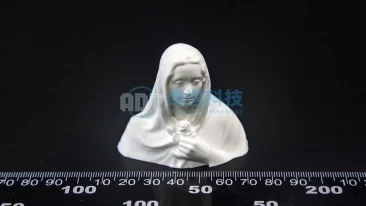

Al₂O₃ - Crafts

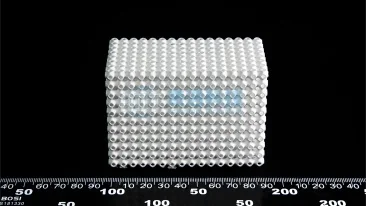

Si-Al Composite-Co

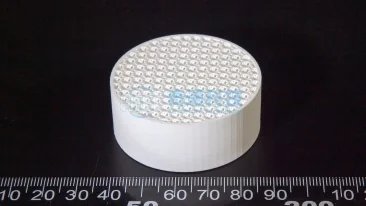

ZrO₂ - Filter Element

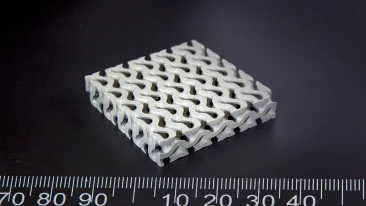

SiC - Block

Device Parameters

Technical Specifications

Parameter	ADT Ceram-D-D96
Equipment model	ADT Ceram-D-D96
Equipment size	605510850mm
Forming space	965490mm
Optical precision	50μm
Resolution ratio	1920*1080
UV wavelength	405nm
Print rate	700 layers/hour
Slurry starting volume	250mL
Printable materials	ZrO₂, Al₂O₃, SiC, SiO₂, HAP, BaTiO₃, all UV-curable photosensitive ceramic & resin materials
