DLP Ceramic 3D Printer for Industry

Bigger, faster, more stable — up to 295×184×120 mm, up to 600 layers/hour for research and mass production.

DLP Ceramic 3D Printer for Industry

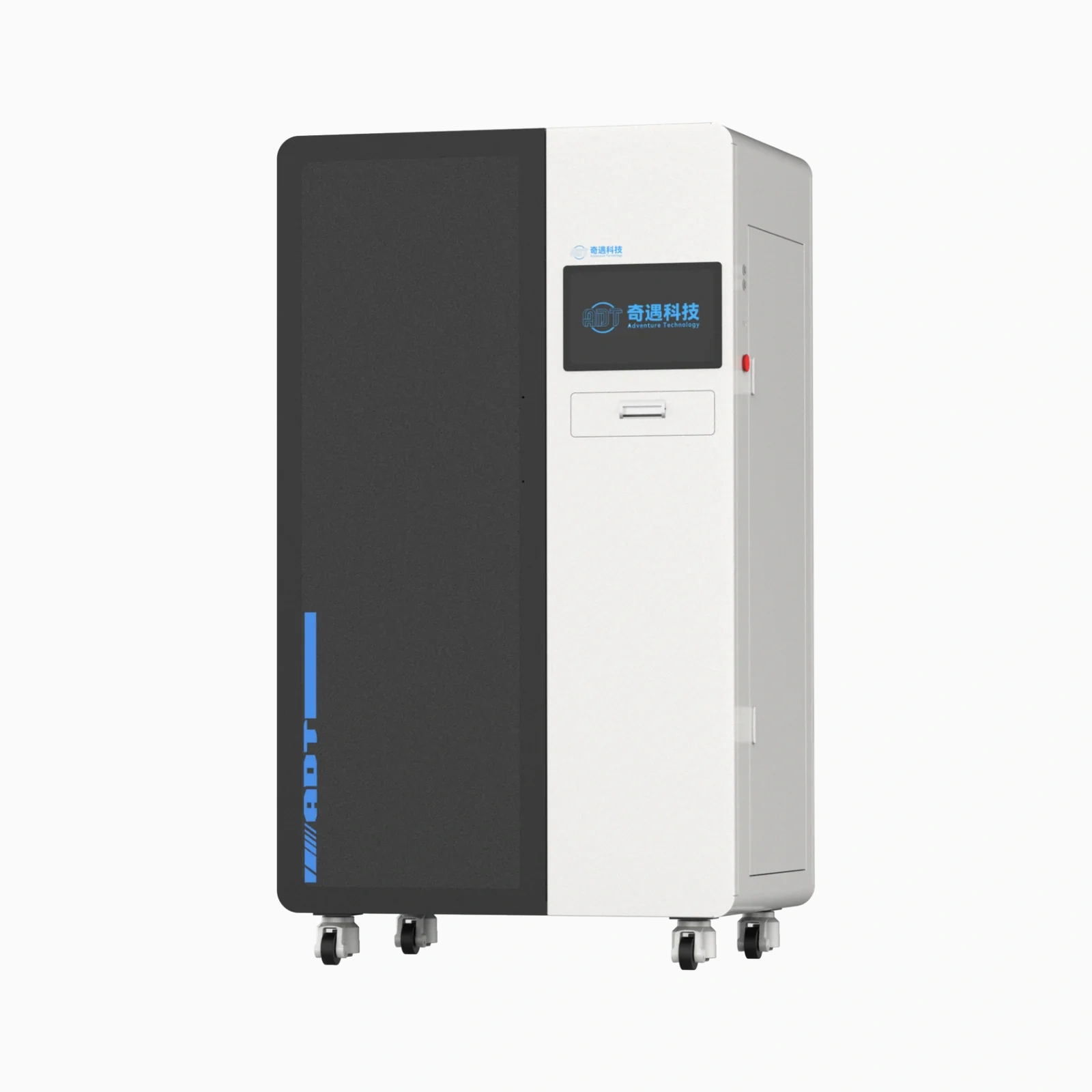

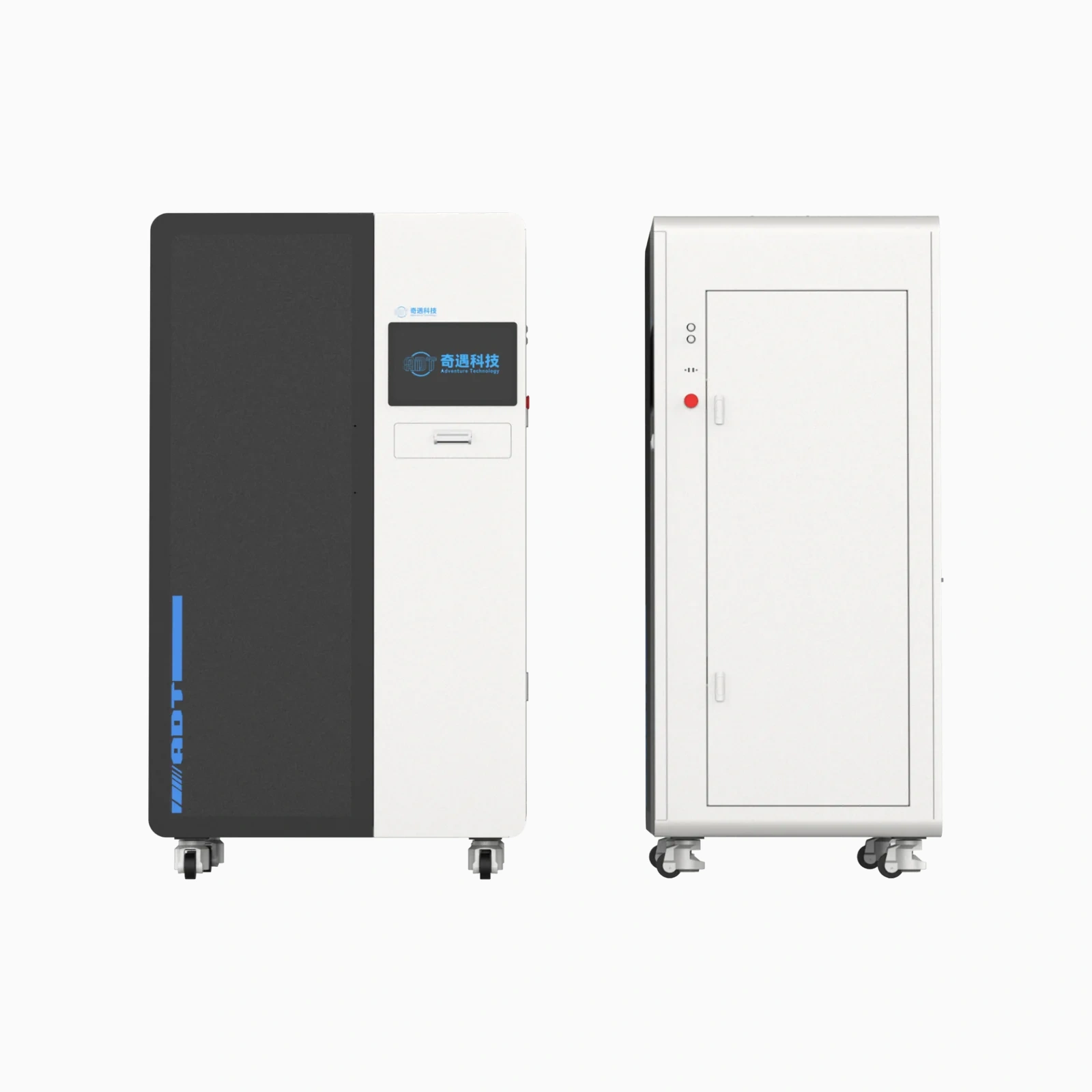

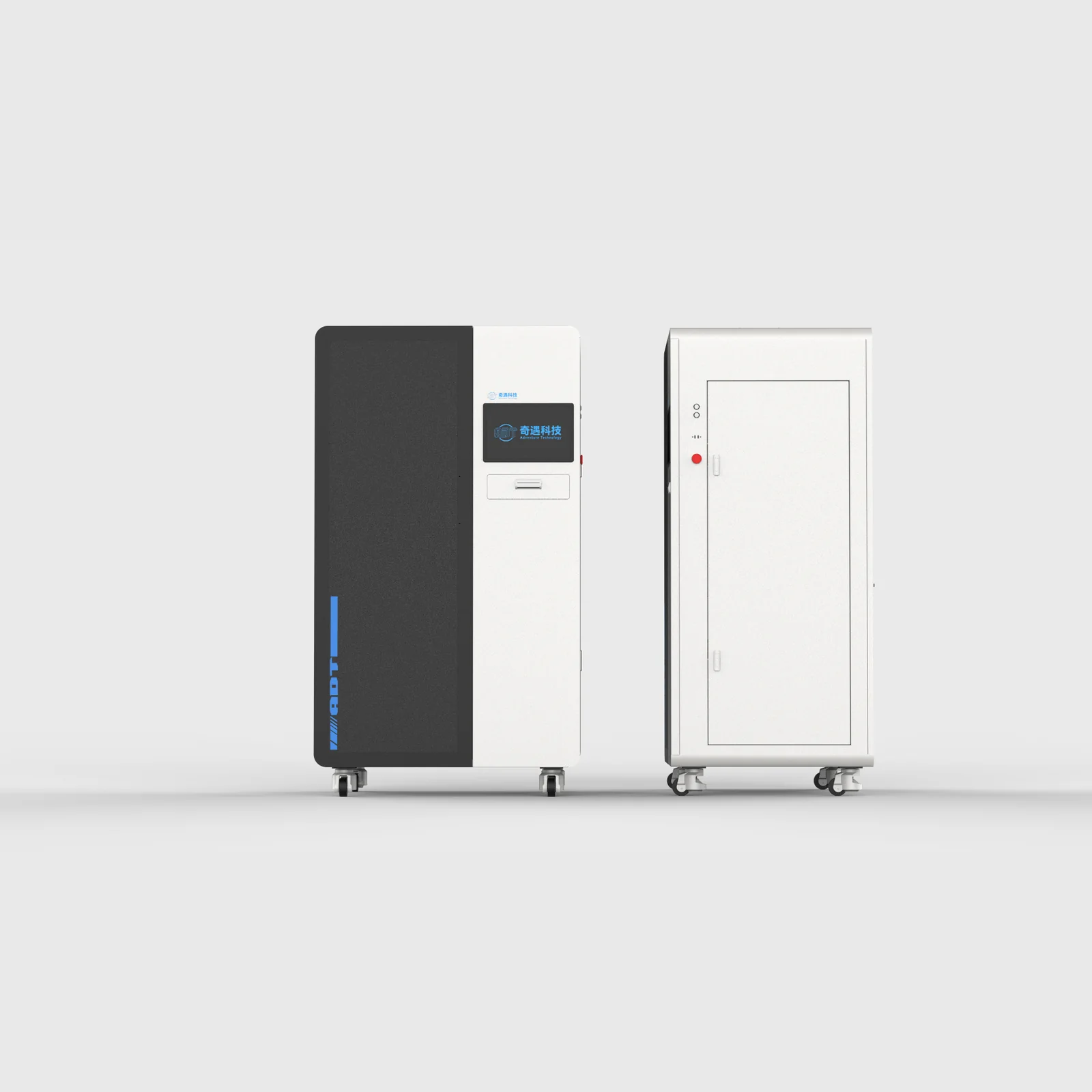

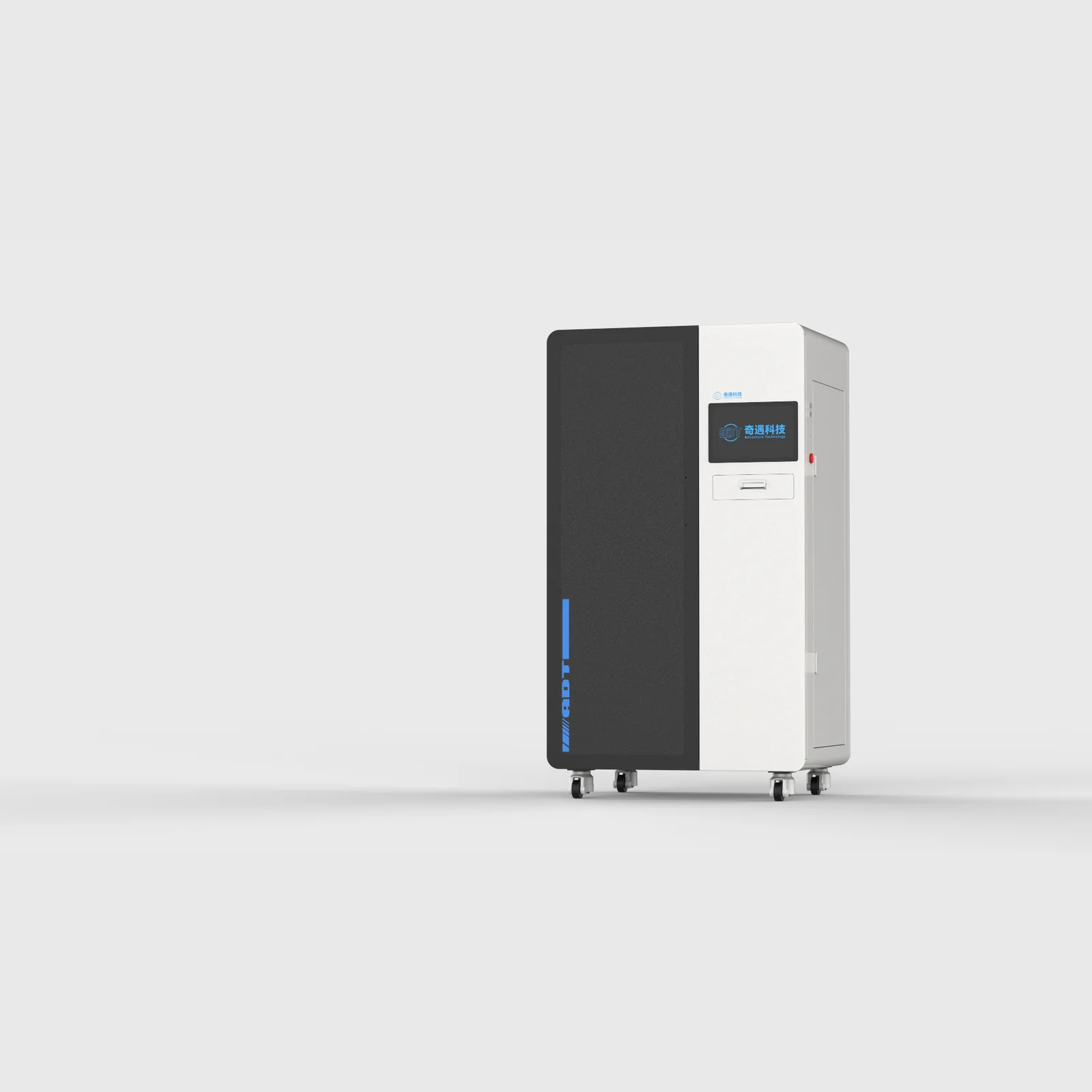

ADT Ceram-D F295 DLP ceramic 3D printer — front view ADT Ceram-D F295 DLP ceramic 3D printer — left 30° view ADT Ceram-D F295 DLP ceramic 3D printer — front and side view ADT Ceram-D F295 DLP ceramic 3D printer — front and side render ADT Ceram-D F295 DLP ceramic 3D printer — front render

Key Features

  • Generous Volume: Maximum forming space of 295 × 184 × 120 mm, meeting industrial large-format requirements.
  • Enhanced Productivity: Up to 600 layers per hour (alumina), ensuring industrial-grade printing efficiency.
  • Superior Stability: Optical precision from 37.5μm to 77μm for stable, repeatable industrial printing.

Application Areas

Dental Medical College Aviation Ceramics Biology

Application Cases

Printed DLP Industry Parts

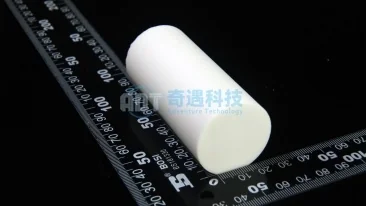

ZrO₂ - Solid Cylinder
ZrO₂ - Solid Cylinder

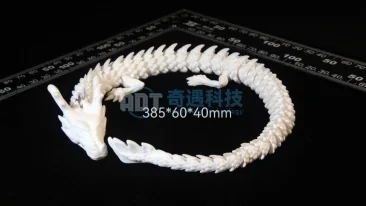

Al₂O₃ - Ultra Large Dragon
Al₂O₃ - Ultra Large Dragon
Al₂O₃ - Rhombohedron
Al₂O₃ - Rhombohedron

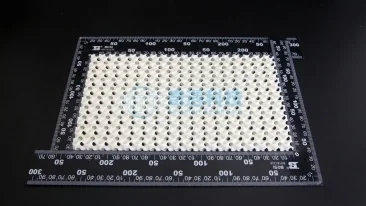

Al₂O₃ - G Surface Body
Al₂O₃ - G Surface Body

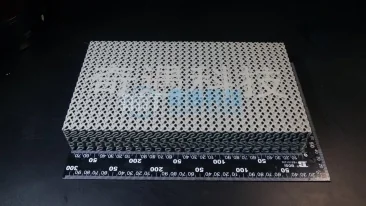

SiC - Gradient G Surface Body
SiC - Gradient G Surface Body

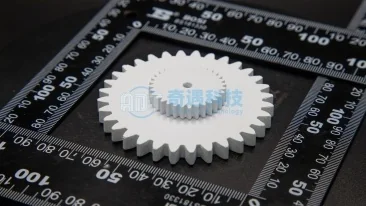

YAG - Gear
YAG - Gear

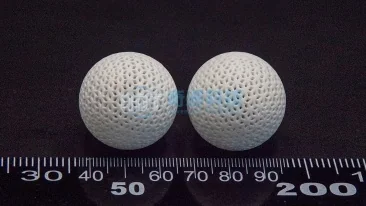

SiO₂ - Hollow Sphere
SiO₂ - Hollow Sphere

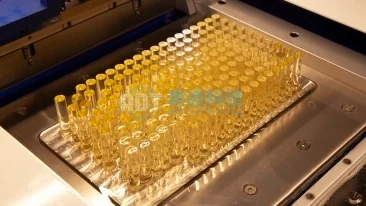

Resin - Round Tube
Resin - Round Tube

Device Parameters

Technical Specifications

Parameter ADT Ceram-D-F144 ADT Ceram-D-F192 ADT Ceram-D-F288 ADT Ceram-D-F295
Equipment modelADT Ceram-D-F144ADT Ceram-D-F192ADT Ceram-D-F288ADT Ceram-D-F295
Equipment size985*610*1900mm985*610*1900mm1215*805*1980mm1100*830*2000mm
Forming space144*81*120mm192*108*120mm288*162*120mm295*184*120mm
Optical precision37.5μm50μm75μm77μm
Resolution ratio3840*21603840*21603840*21603840*2400
UV wavelength405nm
Print rate600 layers/hour600 layers/hour600 layers/hour500 layers/hour
Slurry volume to start0.5L1L1.5L4L
Adaptation materialZirconia, alumina, silicon carbide, silicon oxide, hydroxyapatite, barium titanate, all photosensitive ceramic materials that can be UV curable, all kinds of photosensitive resin materials.
