High-Precision 3D Printing of Silicon Nitride U-Shaped Channels Using ADT-3D-ZP Series
Silicon Nitride (Si3N4) is a high-performance ceramic known for its exceptional hardness, strength, thermal stability, low density, and excellent thermal conductivity and electrical insulation. These characteristics make it a preferred material in industries such as aerospace, automotive, electronics & semiconductors, and medical devices.
However, silicon nitride is notoriously difficult to process using traditional machining. Adventuretech’s ceramic 3D printing technology provides a breakthrough solution for manufacturing complex Si3N4 geometries, such as U-shaped channels.
Project Overview: Silicon Nitride U-Channel Printing
Our team used the ADT-3D-ZP Printer Series to successfully print a U-shaped silicon nitride channel with high precision and structural complexity.

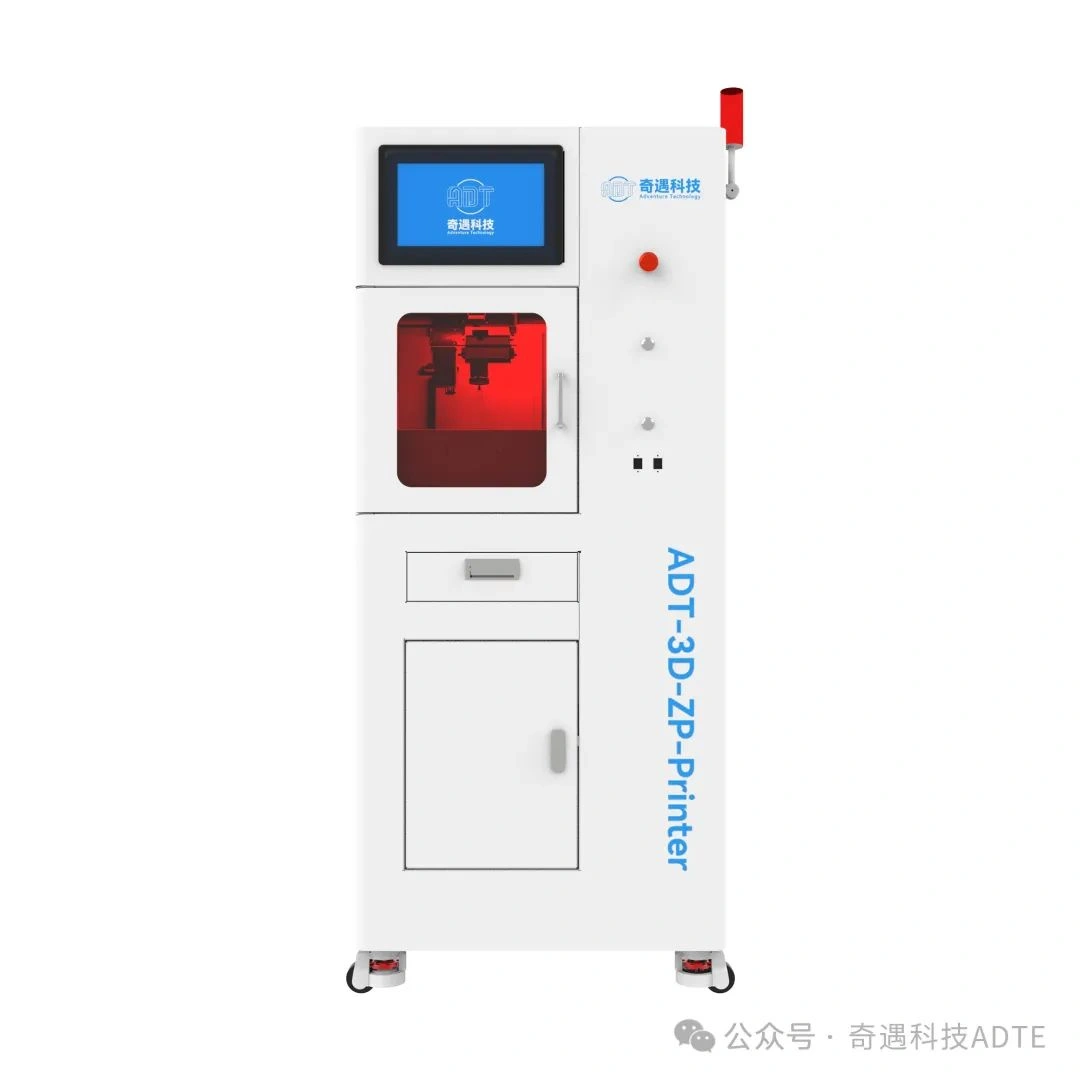

Printer in Use: ADT-3D-ZP
Printing was performed using the ADT-3D-ZP series, specifically designed for high-density ceramic slurry extrusion and precision shaping.

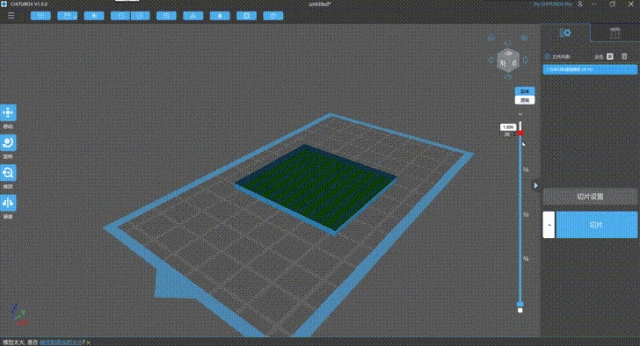

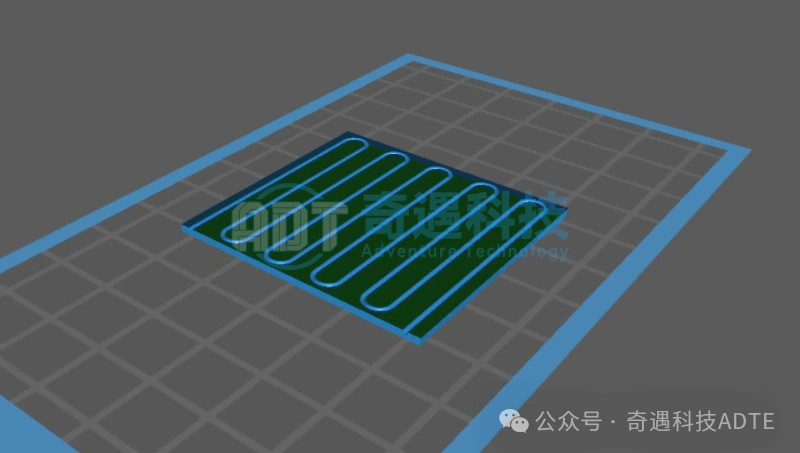

STL Model
Here is the STL model used in the printing process:

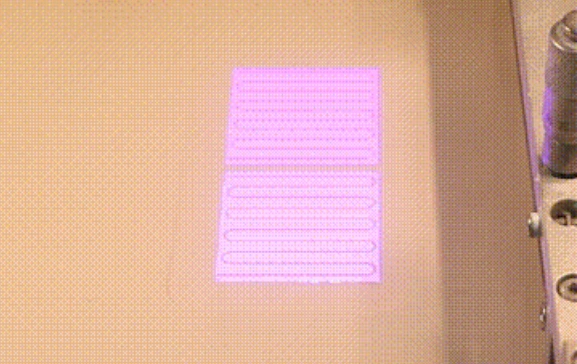

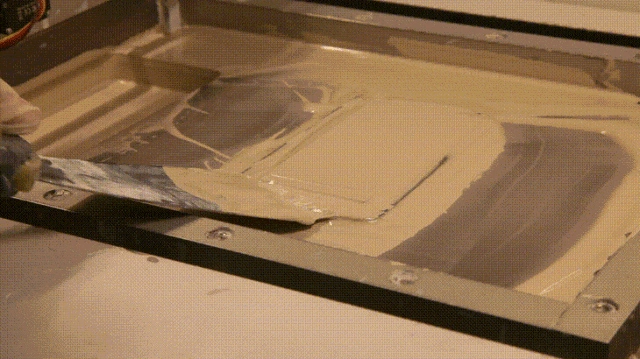

Print Process
The print process included precise extrusion path planning, layer-by-layer deposition, and structural support setup.
Post-Processing: Removal & Cleaning

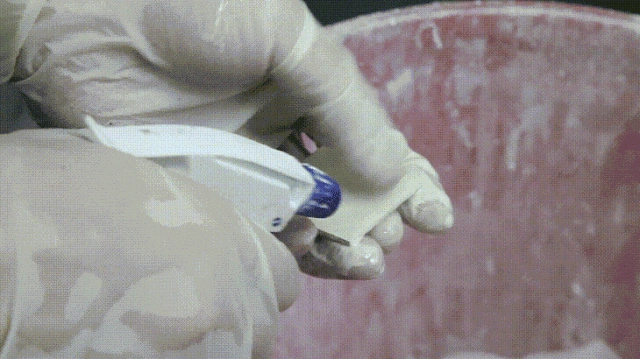

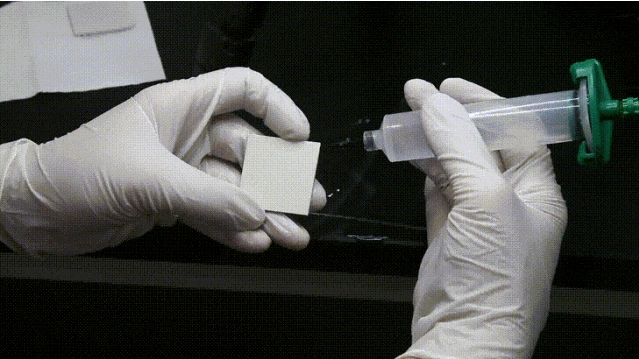

After printing, the inner supports were carefully removed without damaging the main cavity structure. Cleaning was performed using a controlled flow system.

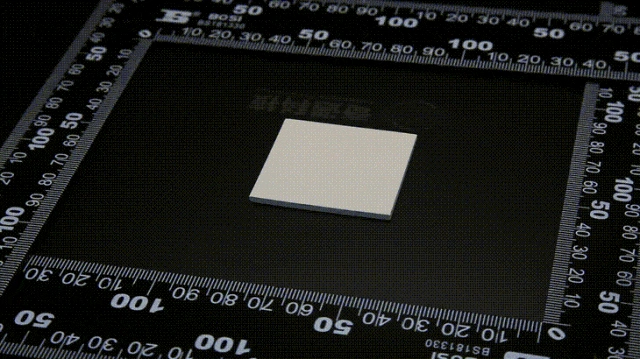

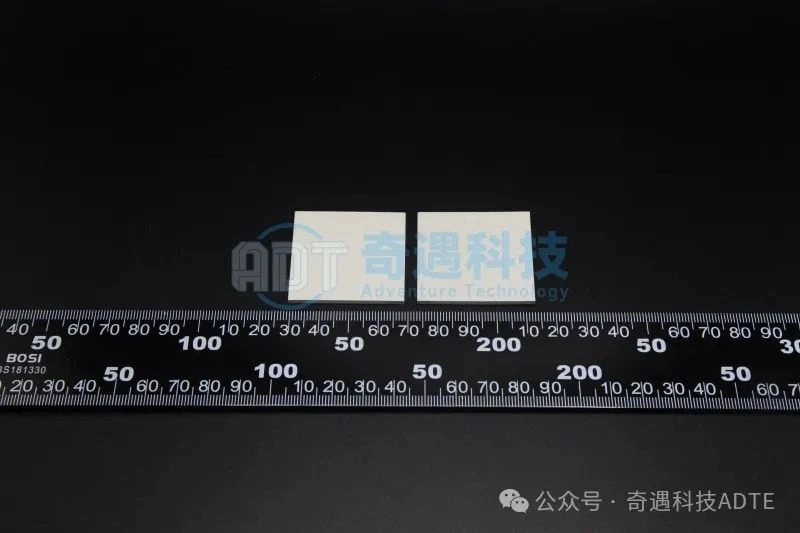

Final Results
The final printed product exhibited excellent dimensional accuracy and a fully preserved internal cavity structure, showcasing the power of Adventuretech’s ceramic 3D printing.
This case study demonstrates the capabilities of our proprietary 3D printing equipment in processing complex silicon nitride structures with internal cavities and support-removal considerations.
Interested in verifying your own silicon nitride components? Contact Adventuretech — we’re ready to help you bring your concepts to life with precision and efficiency.
