Silicon-aluminum composite material is a lightweight, high-performance composite primarily composed of silicon and aluminum. It is characterized by its high strength, light weight, heat resistance, and corrosion resistance. This material is commonly used in the manufacturing of aerospace engine components, electronic heat sinks, and structural parts to meet performance requirements under extreme conditions.
Shenzhen Adventuretech Co., Ltd. has developed a desktop-sized ceramic 3D printing device (ADT-3D-ZM-Ceramic-96-50) with a build volume of 96×54×90mm, an optical accuracy of 50μm, and a print efficiency of 700 layers per hour. During a full-build-area print job using silicon-aluminum composite material, it took only 53 minutes and 58 seconds to successfully print a complex hexahedron with fine mesh structure measuring 96×54×70mm, showcasing the equipment's high efficiency and precision. Moreover, the device is compatible with various photosensitive ceramic materials, including alumina and zirconia, providing users with a broader range of material options.

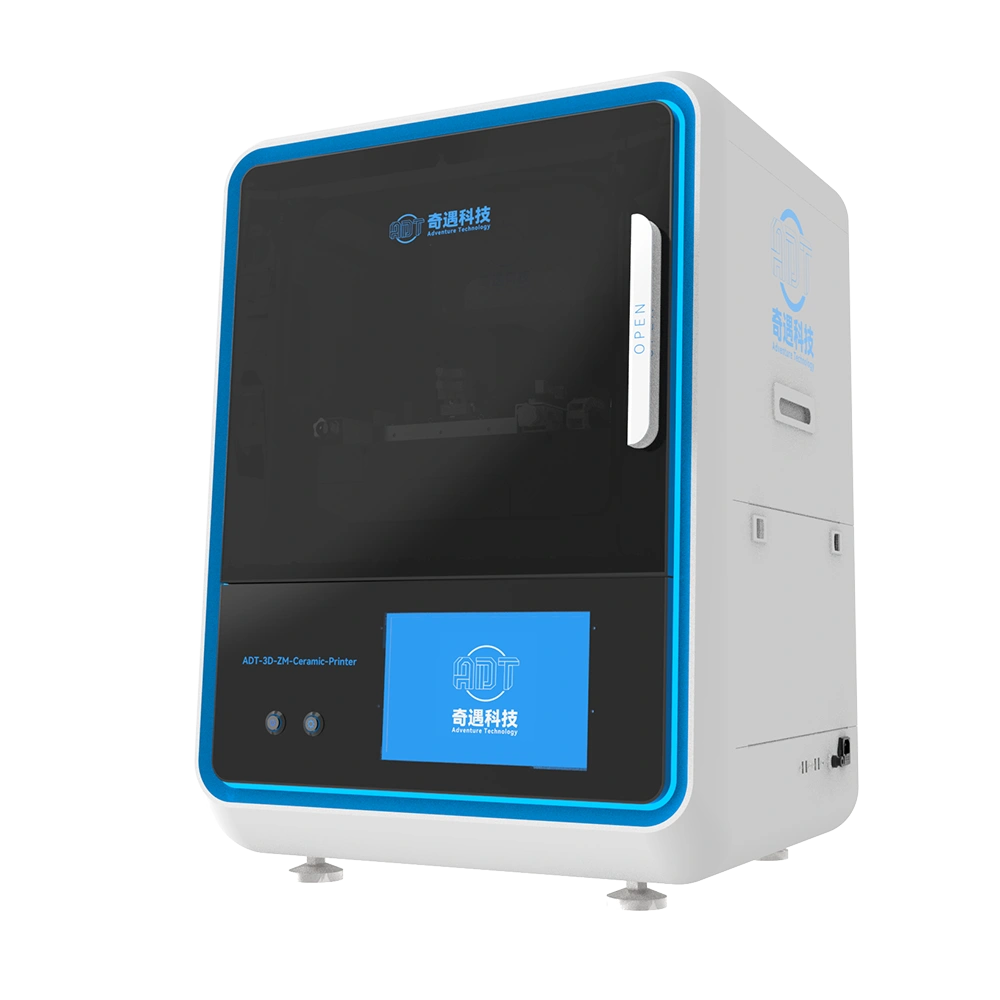

3D Printing Equipment
DLP Ceramic 3D Printer-ADT-3D-ZM-Ceramic-96-50

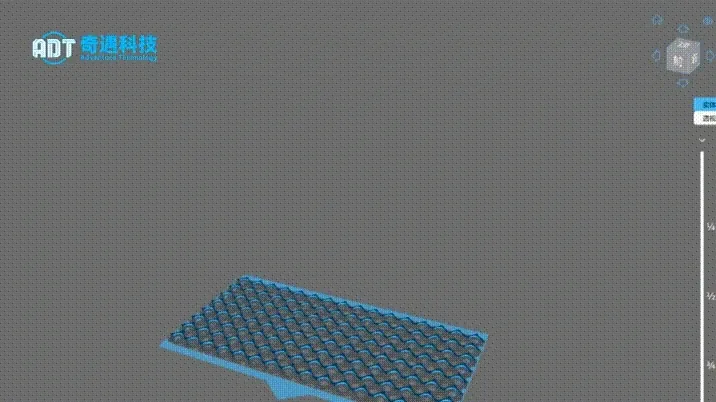

Model Slicing
Preparation of the 3D model for printing through slicing software.

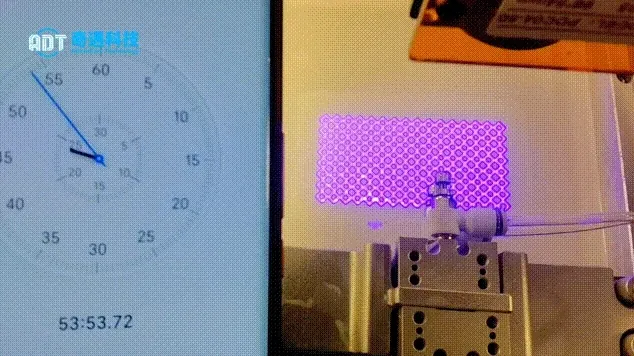

Printing Process
The printing process utilized a light intensity of 60 mW/cm² with an exposure time adjusted to 1 second. The material spreading speed was set at 120 mm/s, and the final exposure took place at 58 seconds.
Successful Print of Complex Hexahedron

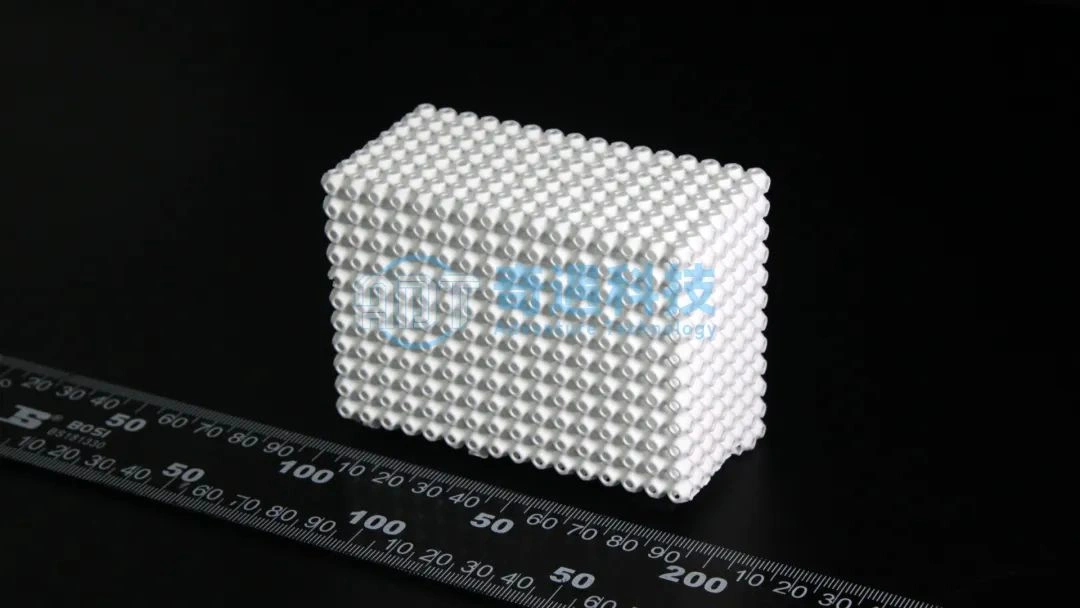

A complex hexahedron made from silicon-aluminum composite material, measuring 96×54×70mm in size, was successfully printed in just 53:58.

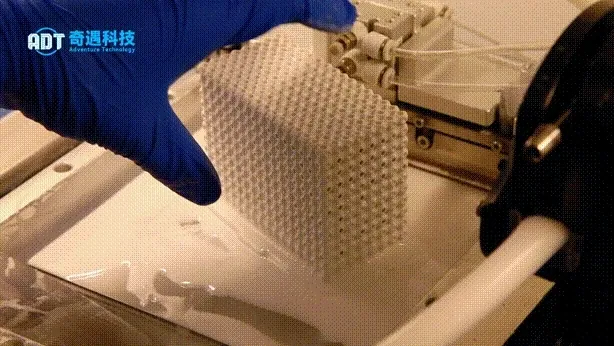

Removal of the Finished Product
Carefully removing the completed print from the printing platform.

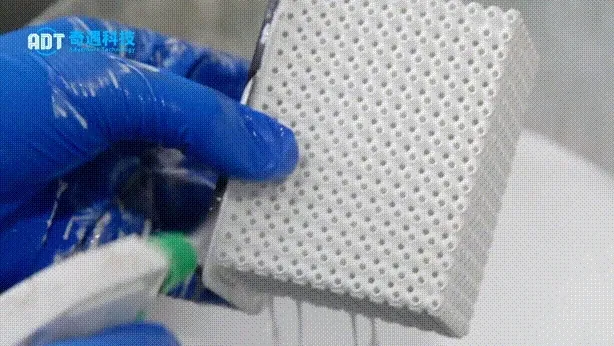

Surface Cleaning
Cleaning the surface of the printed object to remove any excess materials or residues.

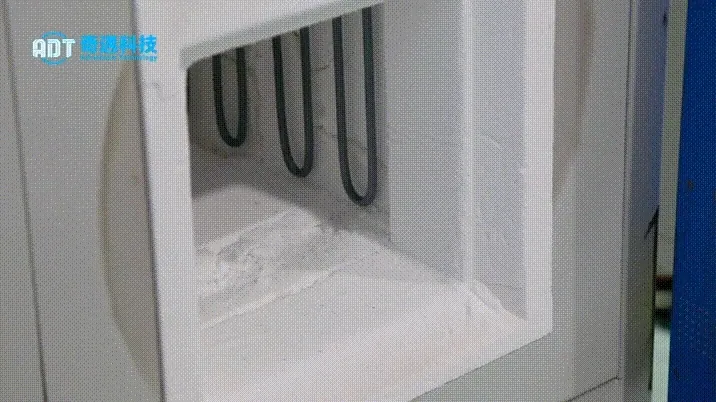

Debinding and Sintering
The post-processing steps include debinding to remove organic binders and sintering to consolidate the structure, enhancing its mechanical properties.
