4D Printing of Ceramic Structures: A New Era for Advanced Ceramics

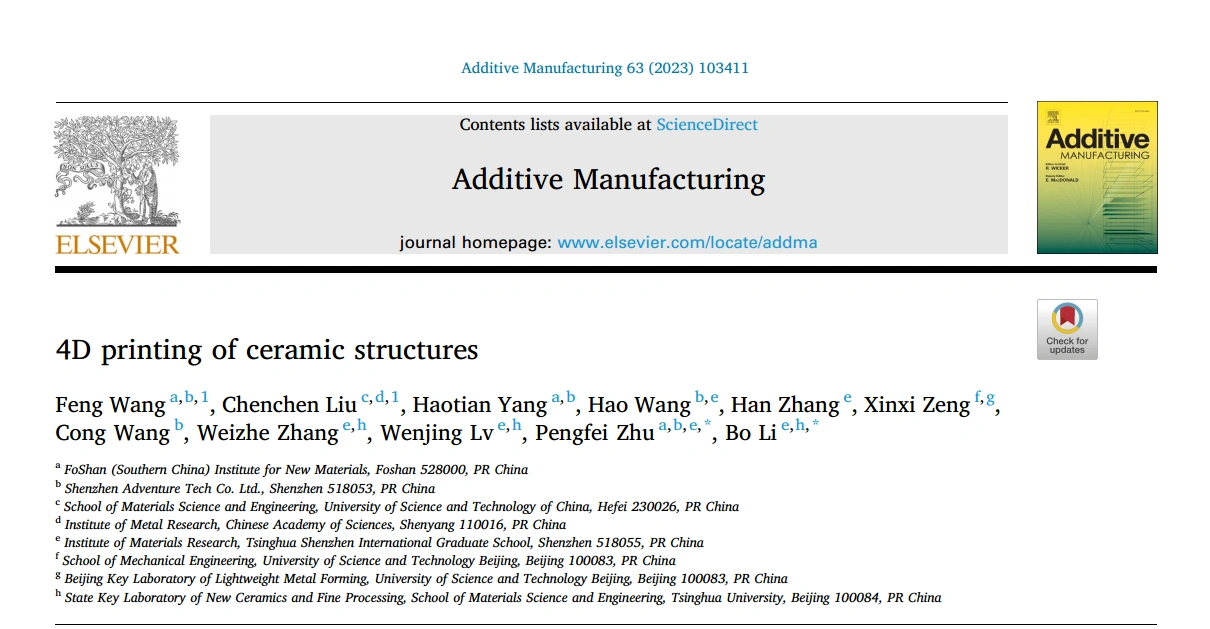

On January 13, 2023, Adventuretech and researchers from Tsinghua University Shenzhen Graduate School jointly published a groundbreaking study on 4D printing of ceramic structures in the journal Additive Manufacturing. This research proposed a new strategy for fabricating ceramics capable of controlled shape deformation using Direct Ink Writing (DIW) and sintering techniques.

Original publication:
https://doi.org/10.1016/j.addma.2023.103411

4D Printing Ceramic : A New Era For Advanced Ceramics

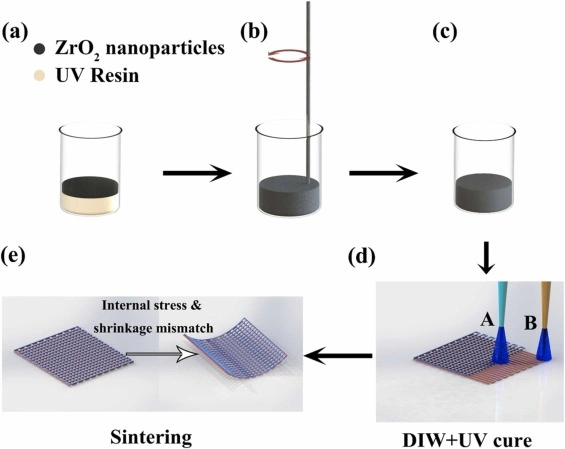

Figure 1: 4D printing of ceramic structures using DIW and UV sintering.

Why 4D Printing for Ceramics?

4D printing introduces time as the fourth dimension, enabling printed objects to change shape post-production. While typically applied to flexible materials, this study explores its application to ceramics, which are traditionally known for their rigidity and brittleness.

The key lies in the stress mismatch during sintering. By layering ceramic materials with different solid contents — high at the bottom and low on top — the researchers achieved self-deformation into curved or flower-like structures, depending on the programmed printing path.

4D Printing Ceramic : A New Era For Advanced Ceramics
Figure 2: Shape transformation of double-layer ceramic cubes after sintering.

Technology & Process Overview

  • Base material: Zirconia (ZrO₂) nanoparticles dispersed in UV-curable resin
  • Printing method: DIW 3D printing with dual nozzles
  • Post-process: UV curing followed by high-temperature sintering

This process enables the fabrication of programmable ceramic structures, from simple curves to complex floral geometries.

4D Printing Ceramic : A New Era For Advanced Ceramics

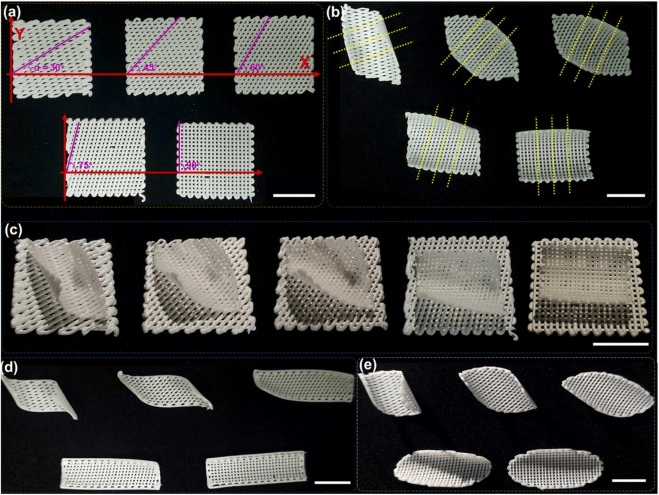

Figure 3: Effects of different paths and solid content on final shapes.

Applications & Future Impact

The ability to precisely control the shape of ceramic structures opens new possibilities for aerospace, biomedical implants, microfluidics, and art-inspired designs.

4D Printing Ceramic : A New Era For Advanced Ceramics

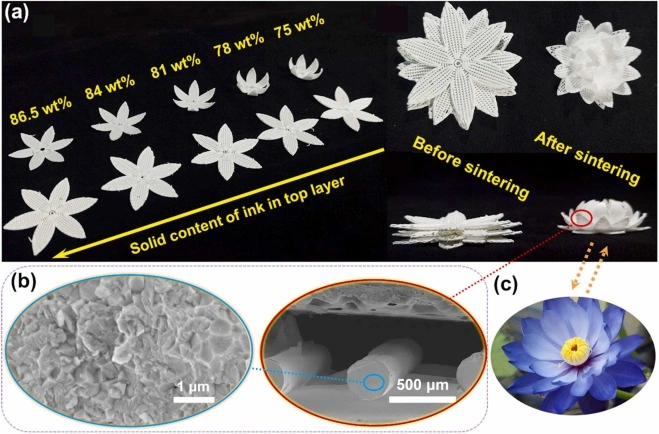

Figure 4: Various flower-like 4D printed ceramic structures.

Conclusion

Through DIW and sintering-induced self-deformation, Adventuretech’s research demonstrates a viable strategy for shaping ceramics in previously impossible ways. This 4D printing method marks a significant leap in ceramic 3D printing technology and opens the door to innovative applications in various industries.
