Alumina 3D Printing: Application Results

AdventureTech successfully printed an alumina G-shaped object with dimensions of 269.3x160x9.7mm and sintered it to a size of 228x135x8mm. Ceramic materials are very prone to cracking during the fine 3D printing process. This is due to their inherent brittleness; if temperature, humidity, and material flow are not effectively controlled during the molding process, cracks will appear, leading to printing failure. The risk of cracking is even higher when printing large-sized and complex structures, making it difficult for traditional processing methods to manufacture ceramic parts with complex shapes and fine structures.

AdventureTech successfully solved this problem through advanced 3D printing technology. Using advanced additive manufacturing technology, ceramic materials are layered and molded, and then sintered at high temperatures to achieve ideal performance. The successful printing and sintering of a 228*135*8mm alumina G-shaped object, which is not only large in size but also complex in structure and high in precision, fully demonstrates AdventureTech’s leading position in the field of ceramic 3D printing.

Alumina 3D Printing: Printing Equipment

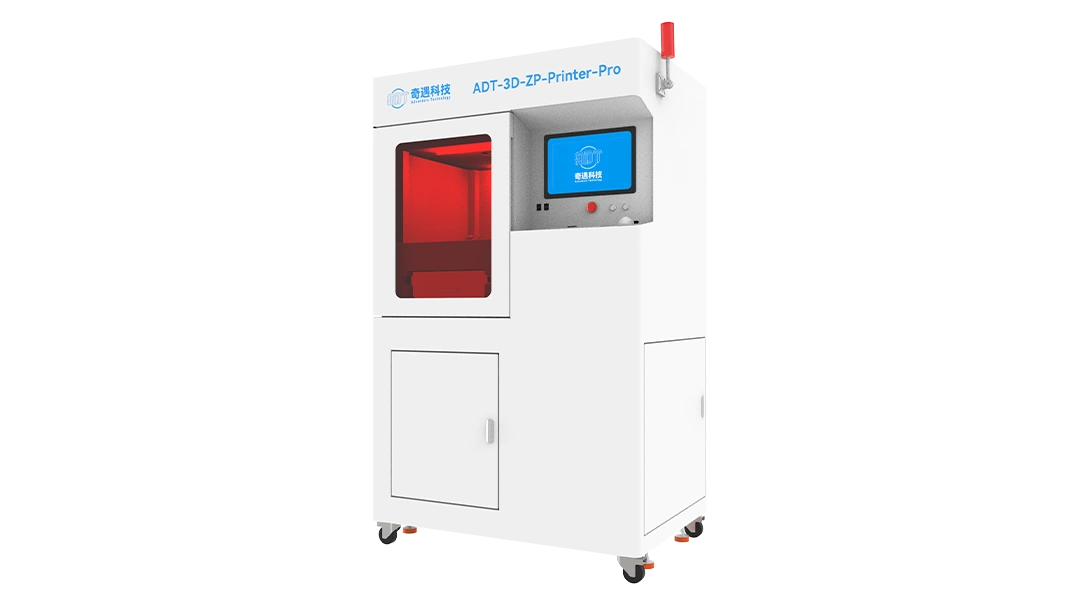

Using AdventureTech’s independently developed
(ADT-3D-ZP-Printer-Pro-288-75) printer

Alumina 3D Printing:Large-sized alumina G-shaped object

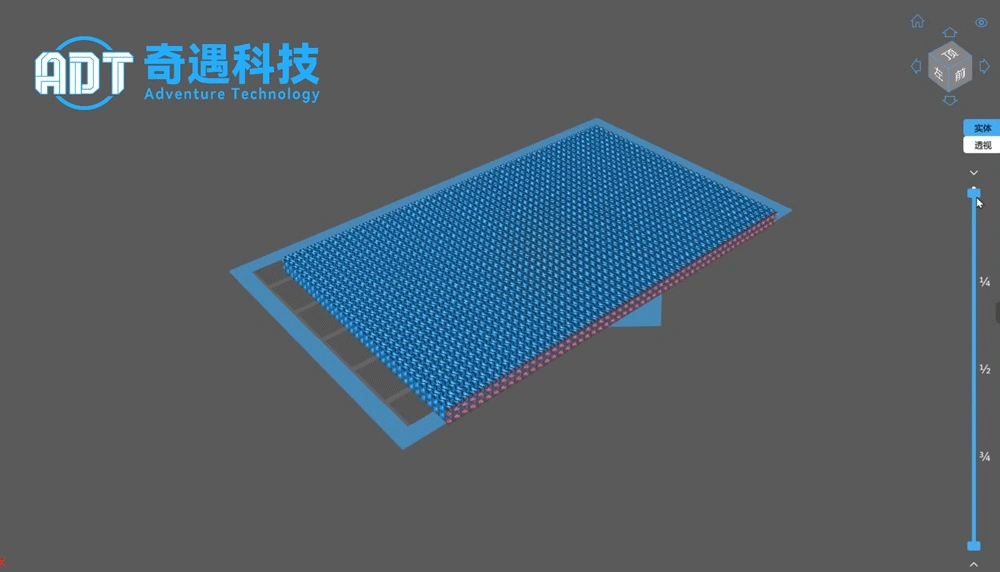

STL model printing dimensions: 269.3 x 160 x 9.7 mm

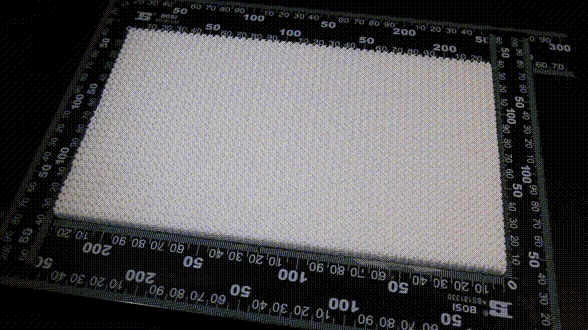

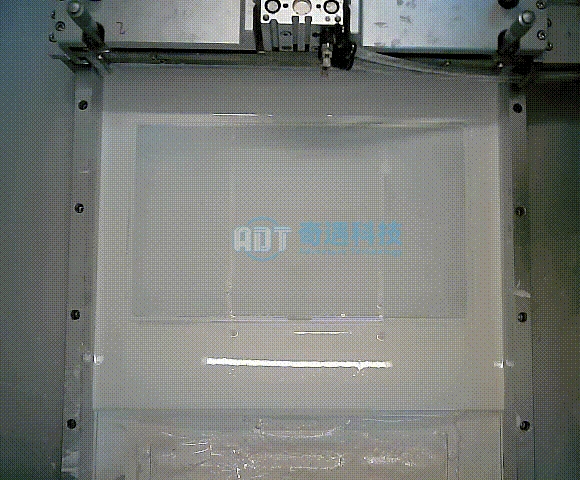

Alumina 3D Printing: Printing Process

The final printing was completed using a light intensity of 43mW/cm2,

an exposure time of 1.5s,

and a material laying speed of 100mm/s.

(Video is sped up)

Alumina 3D Printing: Finished Product Display

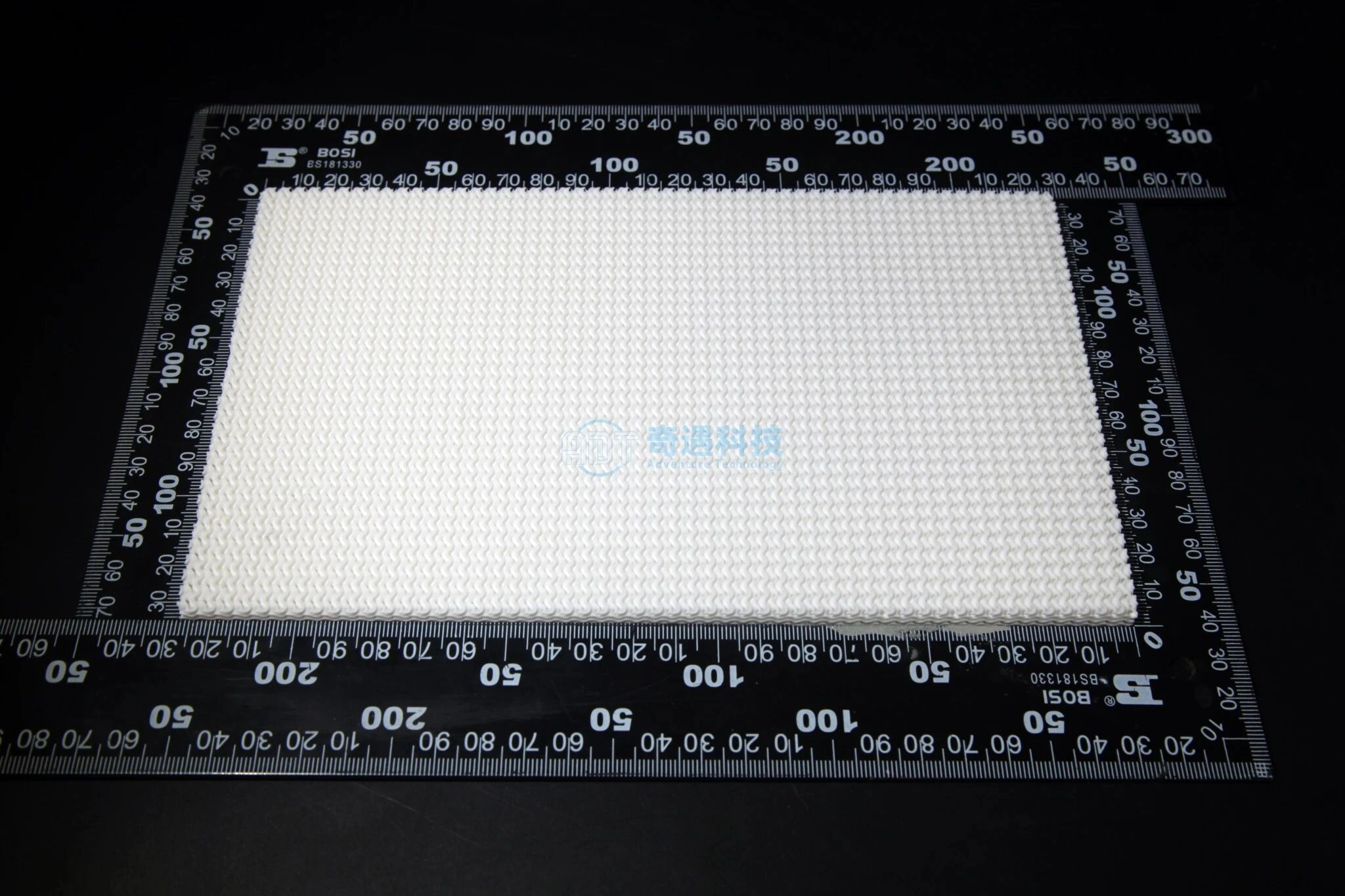

Finished product display after sintering

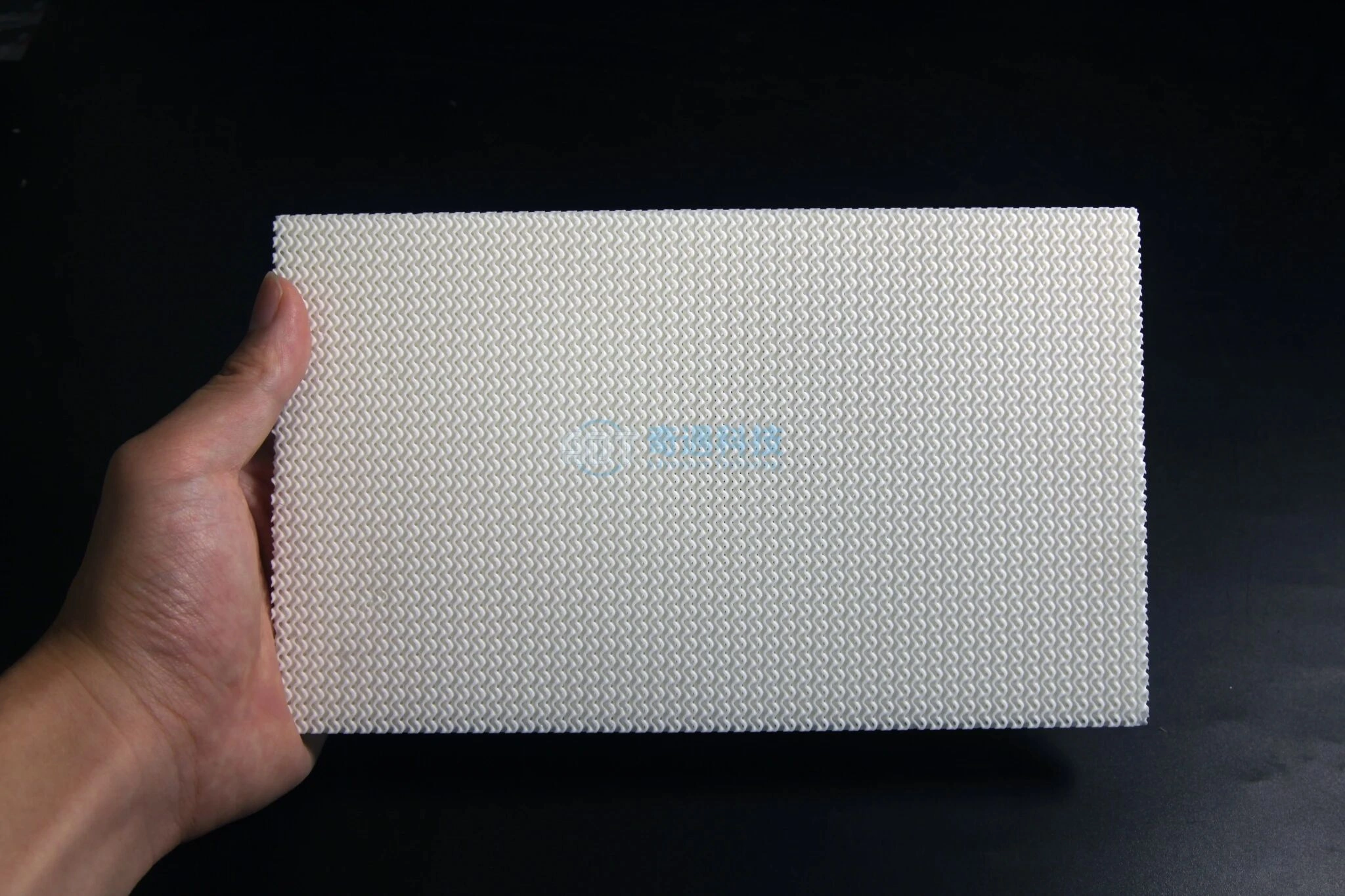

Finished product display after sintering

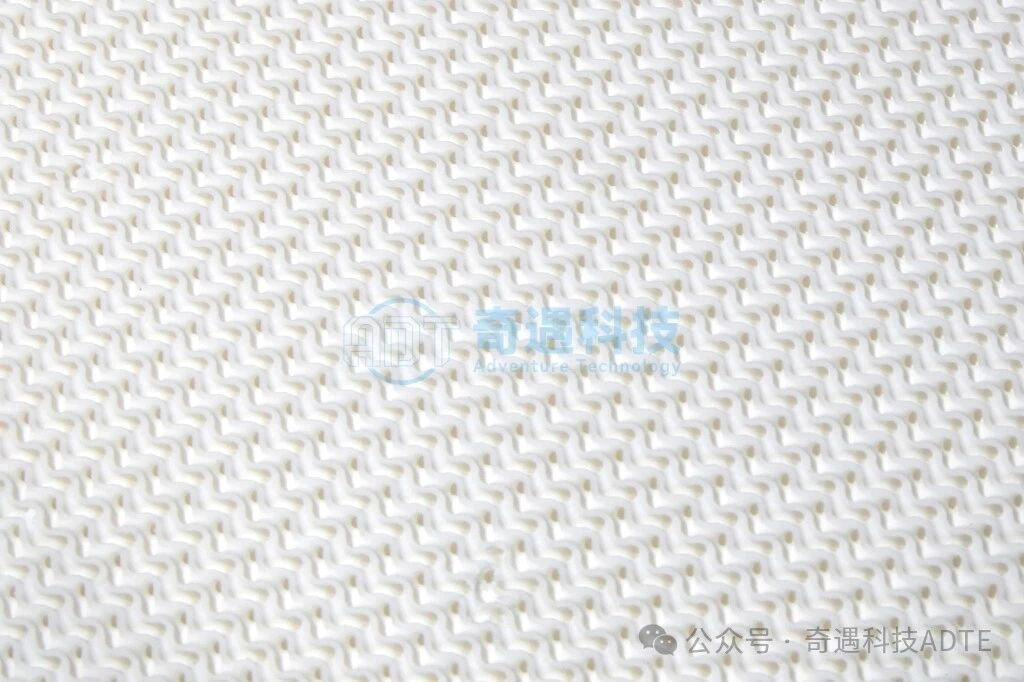

Detailed view after sintering

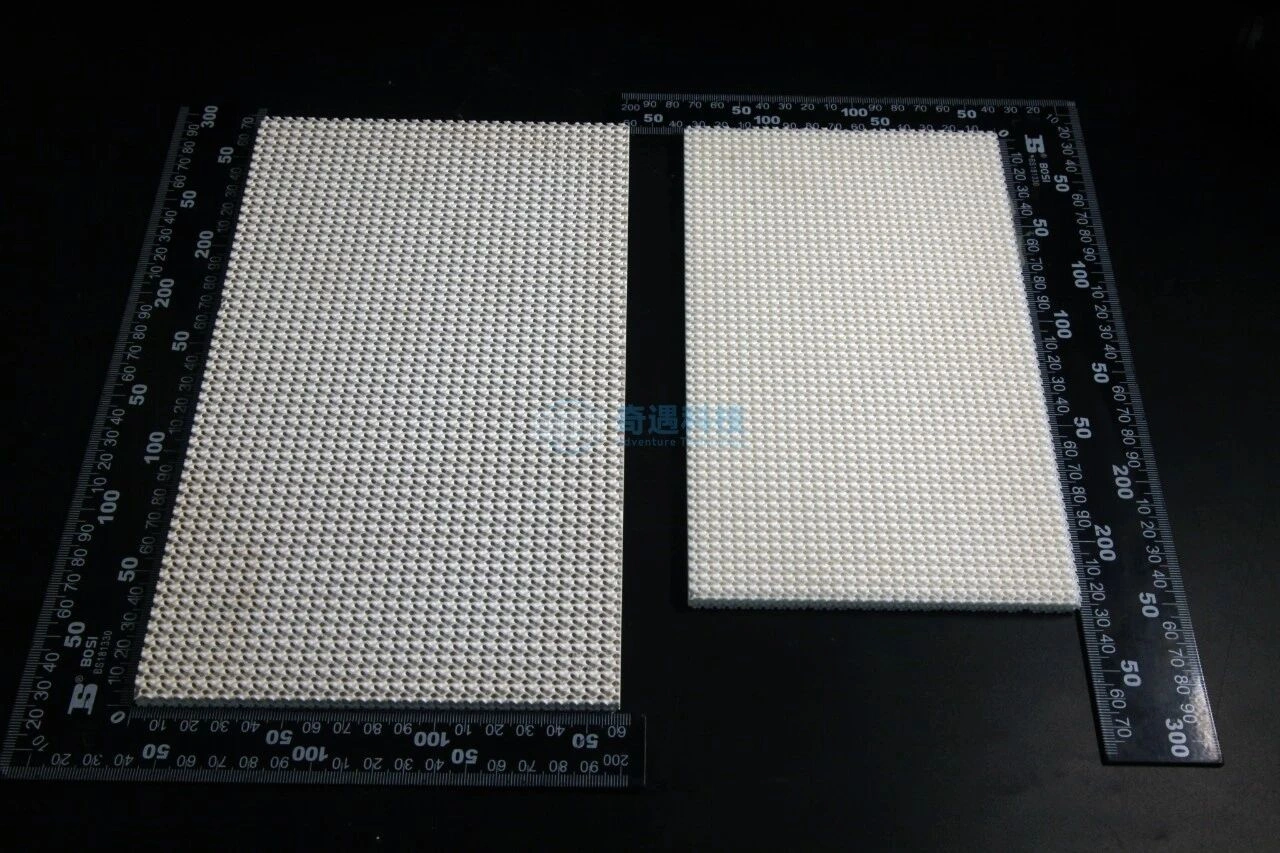

Left: Before sintering (269.3×160*9.7mm) (Right: After sintering (228*135*8mm)

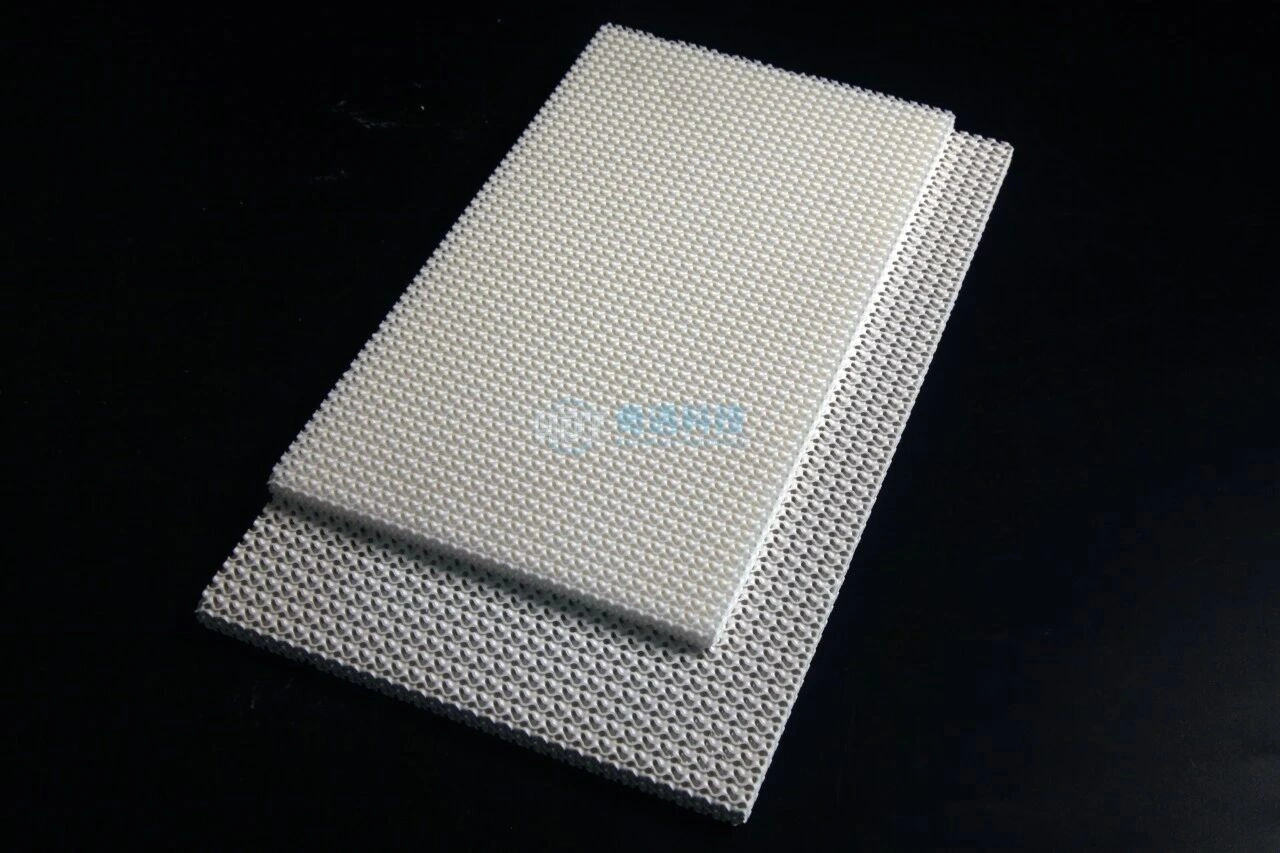

Comparison image before and after sintering



This technological breakthrough not only demonstrates our profound strength in the field of 3D printing but also has significant implications for promoting the application and development of ceramic materials.
